Process crowds efficiently through doorways

A New Way Forward

As the world gets used to coexisting with COVID-19, people are hoping that recent inconveniences are gradually removed so that life can go back to normal. This disease has been a reminder to people of the need to protect themselves. The BenQ Temperature Screening Solution is the ideal choice for corporate and retail bringing back normalcy. This contactless temperature screening system ensures that offices, shopping malls, and businesses can function while still protecting the health of employees and customers.


Why a Temperature Screening Solution?

A temperature screening solution is an effective way of screening the potentially ill, safeguarding indoor locations for employees and customers alike. It is a more comprehensive solution than competing options, as it highlights efficiency, safety, and tracing capability.

Efficiency

A reliable temperature screening solution can process crowds quickly, making it ideal for rapid screening at doorways. This eliminates the expense of having personnel take temperatures manually and the customer inconvenience of long lines.

Customers line up for a temperature check

Customers line up for a temperature check

Safety

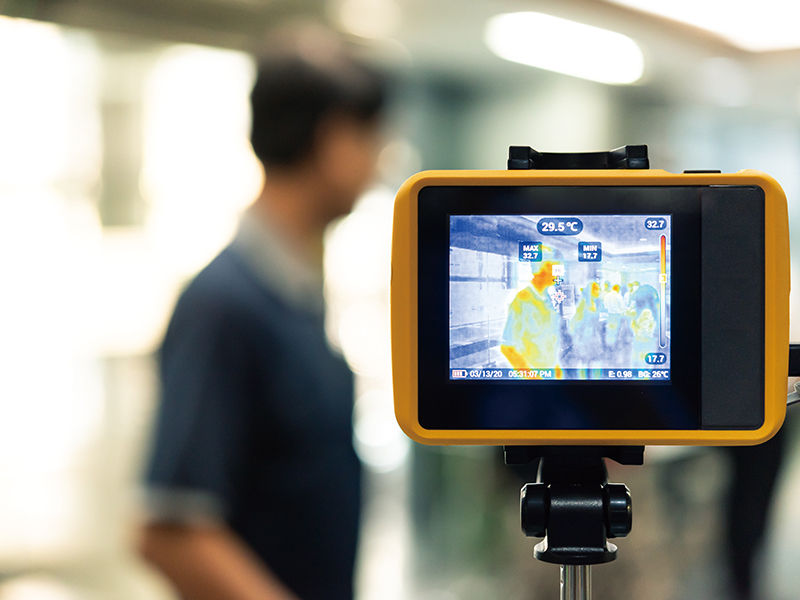

Scanning at a distance reduces the health risks to monitoring personnel, and doing so at speed reduces risk of transmission between passersby, which makes it a superior solution to competing options like handheld thermographic cameras.

Taking temperatures by hand increases the risk of infection.

Taking temperatures by hand increases the risk of infection.

Tracing

Data collected by the system can be stored and used to cross-check possible infected persons. This ensures that cases are not misdiagnosed or missed. An automated email is sent to supervising personnel if an anomaly like a high temperature is noted.

When tracing is impossible, an opportunity to halt the spread of disease is lost.

When tracing is impossible, an opportunity to halt the spread of disease is lost.

Why BenQ Temperature Screening Solution?

BenQ is a leader in product design for visual displays and network convergence technologies with the hope to delight the world. The firm is well-placed to provide state-of-the-art screening solutions.

Intelligent scanning & instant retrieval

Images are instantly transferred to the user’s display for remote monitoring, while multiple test points allow for highly efficient rapid scans. Customizable temperature settings based on conditions on the ground limit errors, while privacy can be protected through the inclusion of both thermal and optical cameras. Where a high temperature is noted, an alarm will go off and related data can be saved and emailed to allow for tracing.

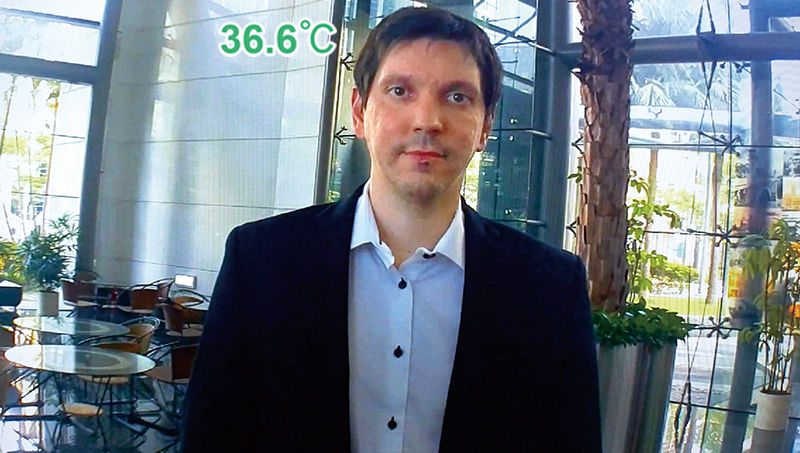

The optical camera preserves privacy.

The optical camera preserves privacy.

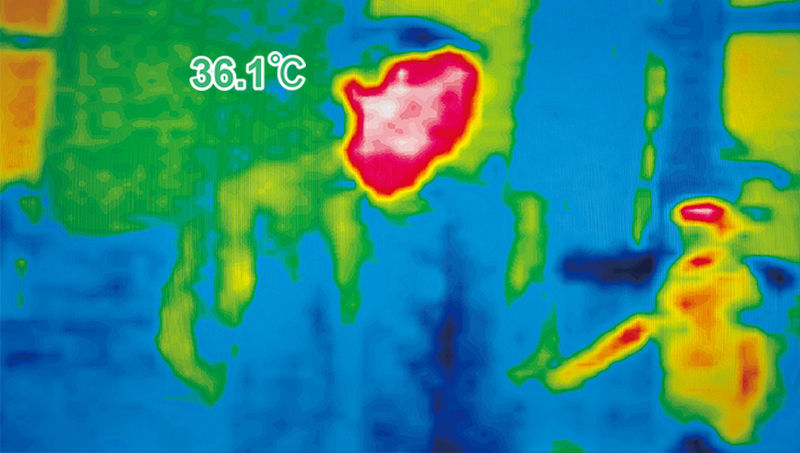

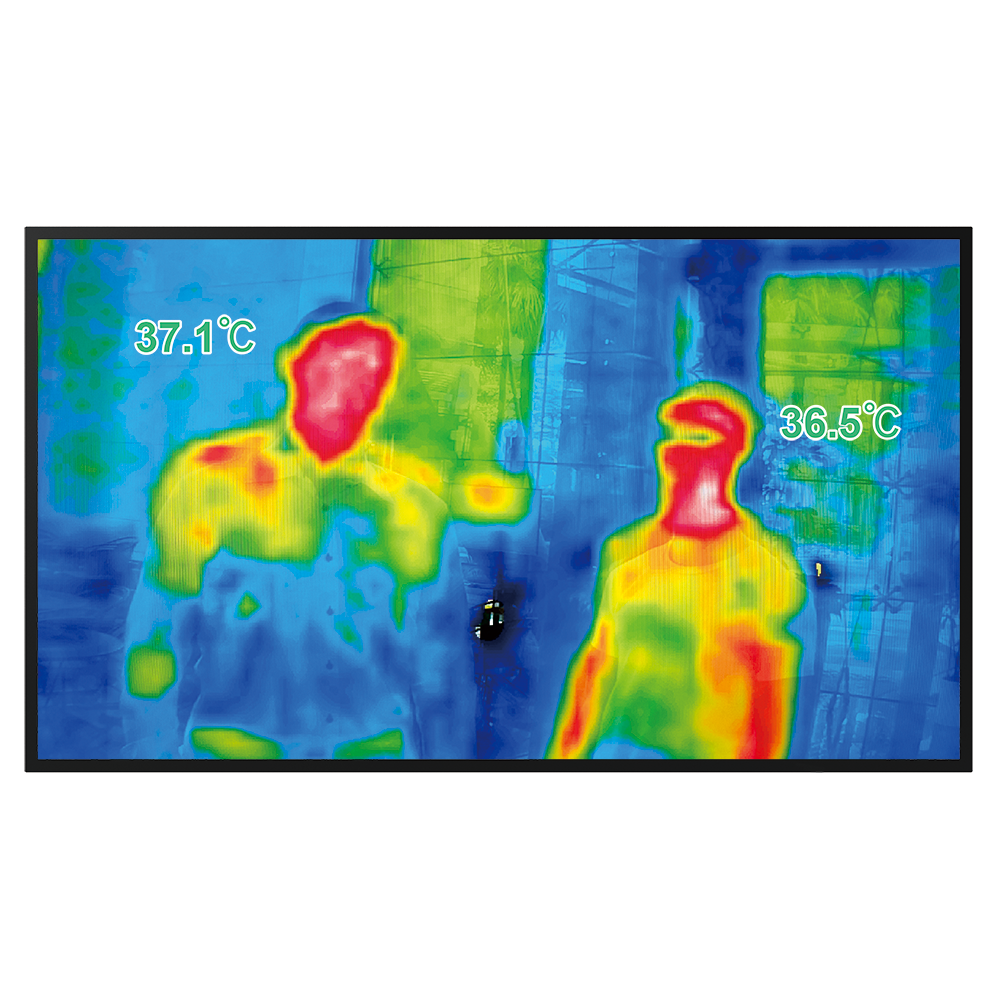

The thermal camera shows points of higher temperature.

The thermal camera shows points of higher temperature.

Proven track record of professional service

BenQ is known across the industry for providing on-point technical solutions to modern-day problems. The ST02 4K Smart Signage series, an all-in-one Android solution, is packed with the latest technology, including 4K resolution at 450 nits brightness. Built to run 18 hours a day, seven days a week, this workhorse can be set to view in landscape or portrait style (available in either 43/55”), allowing for greater flexibility in installation, and can support up to nine cameras.

Taking temperatures by hand increases the risk of infection.

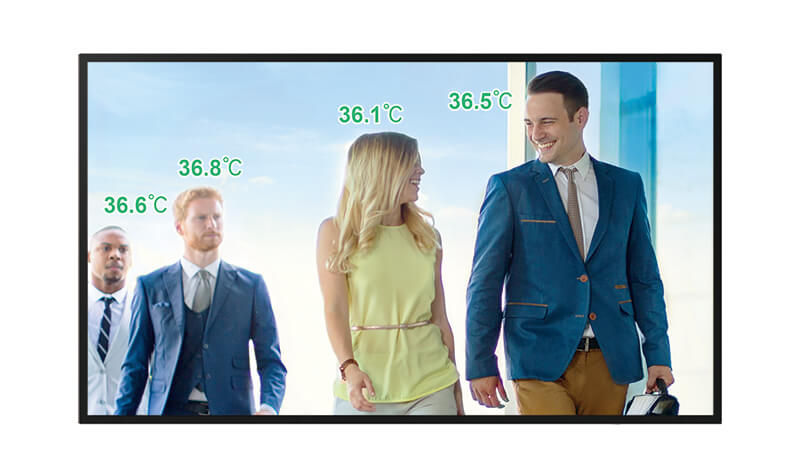

Hands-free thermal sensing and noticeboard

Taking temperatures by hand increases the risk of infection.

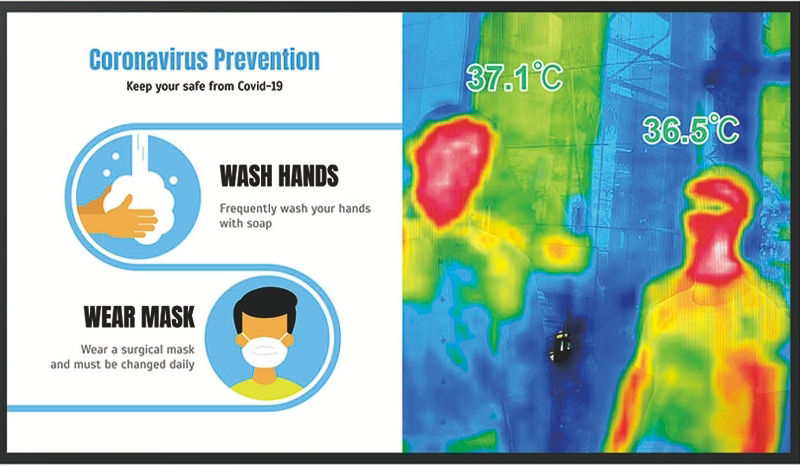

The X-Sign’s templates help admins design messages quickly. One half of the screen displays a message, the other half a live image from the thermal camera in either landscape or portrait view.

Taking temperatures by hand increases the risk of infection.

Program and Insert Push Messages

Taking temperatures by hand increases the risk of infection.

Taking temperatures by hand increases the risk of infection.

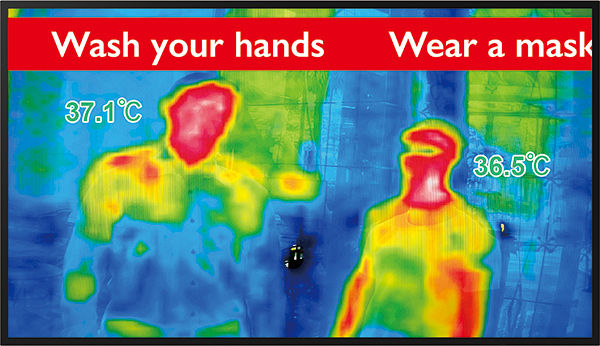

The system allows for customizable X-Sign Broadcast, such as alerts and evacuation calls, as both scheduled or interrupt text or image messages. These messages can be programmed via both devices and PCs.

Convenient Remote Device Management

Taking temperatures by hand increases the risk of infection.

Taking temperatures by hand increases the risk of infection.

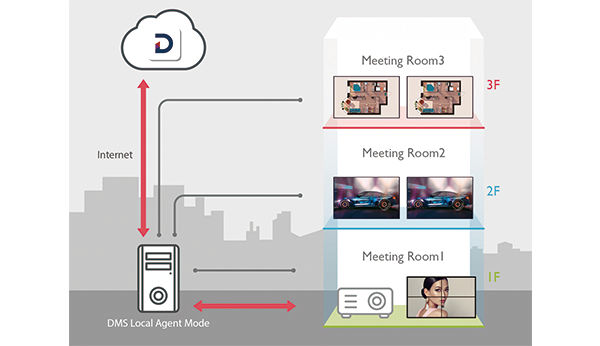

Displays can be remotely monitored and managed through the Device Management Solution (DMS). Accessing the DMS Cloud, users can install and execute Android apps on displays remotely. Such convenient solutions reduce energy and personnel costs by being intuitive and on-the-go!

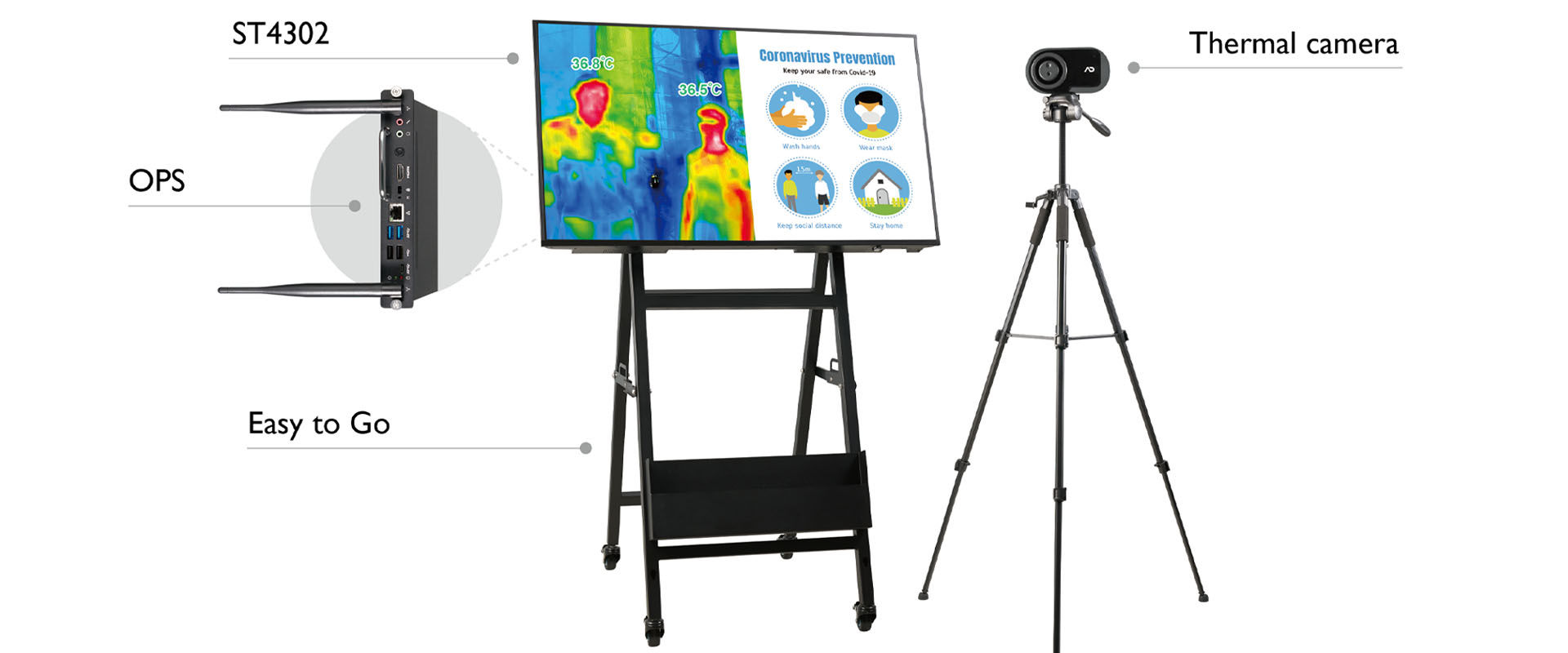

BenQ’s Temperature Screening Solution

Specifications of Temperature Screening Solution

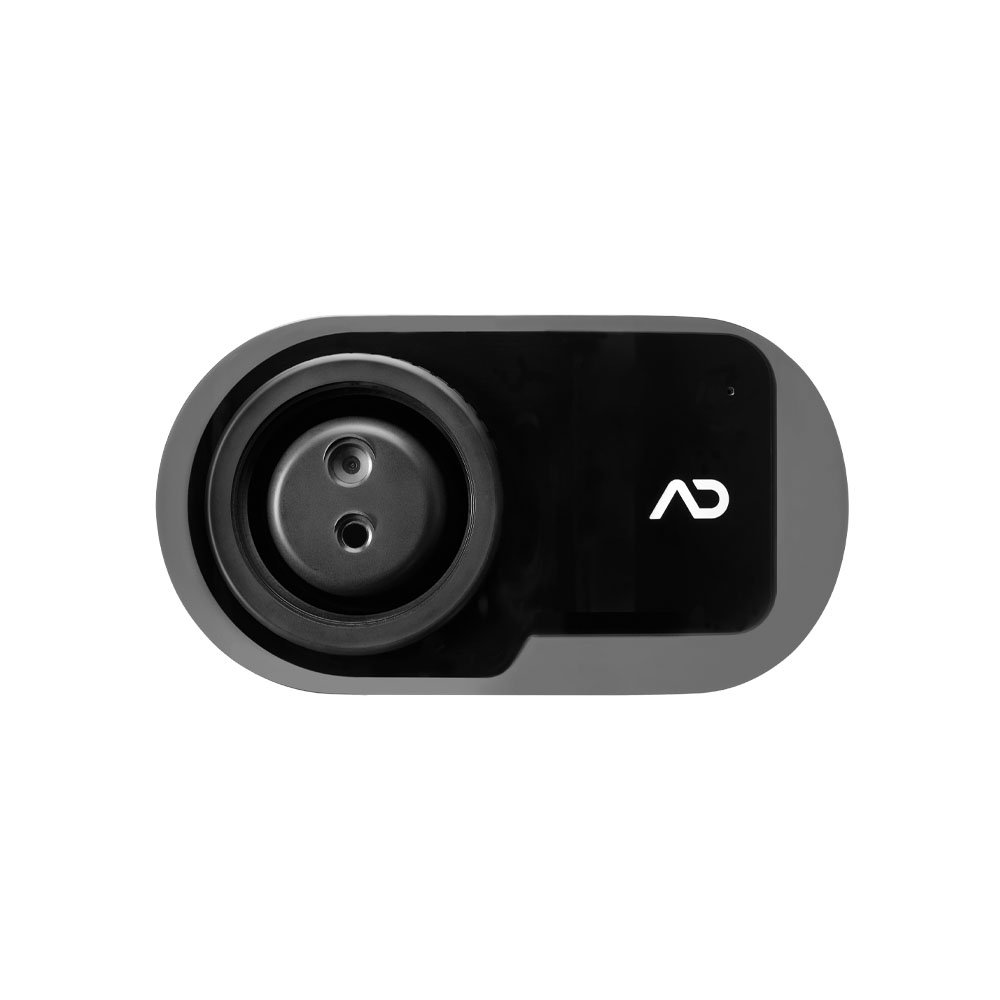

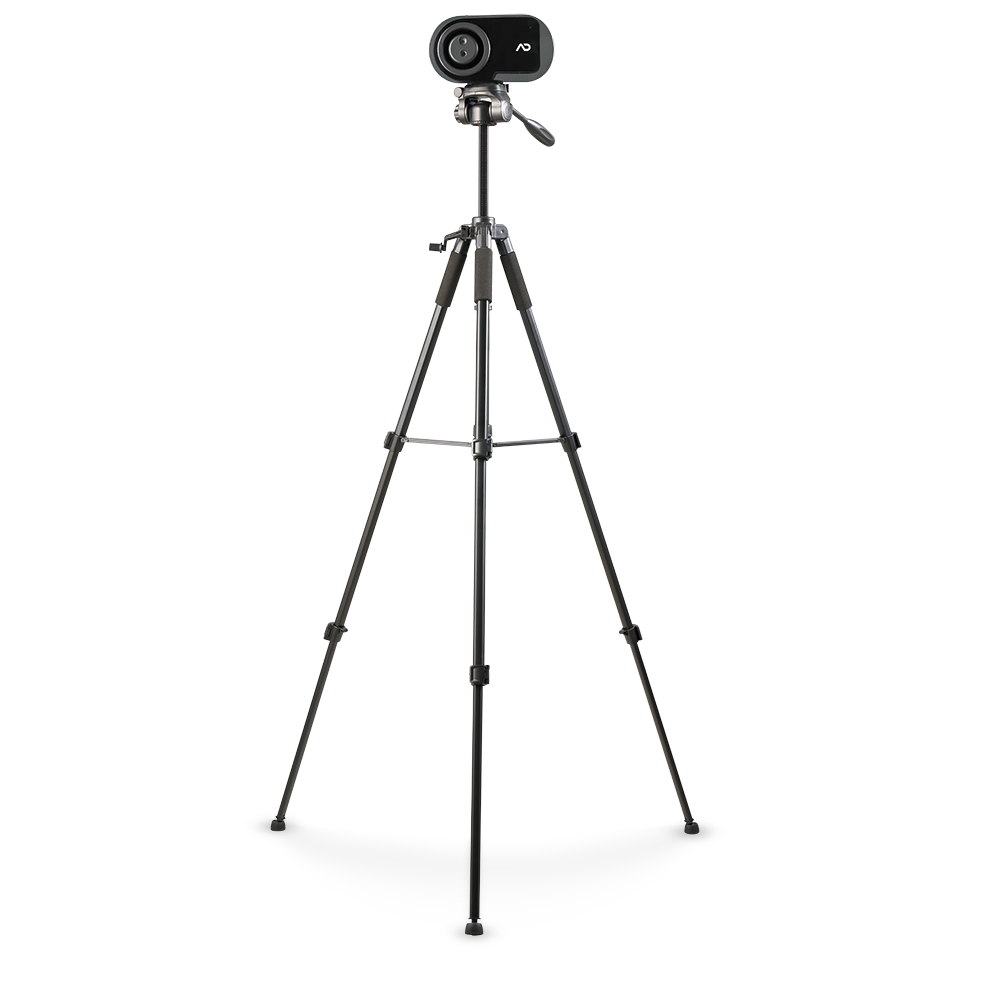

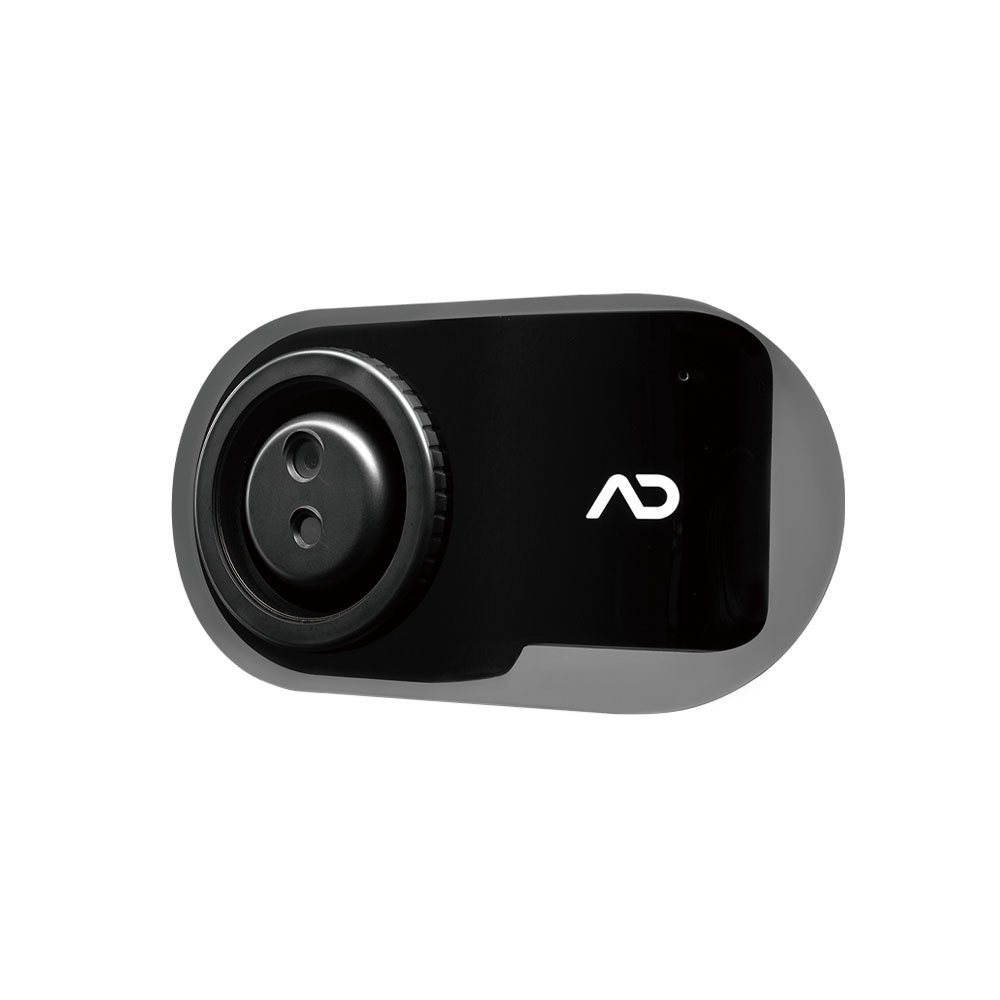

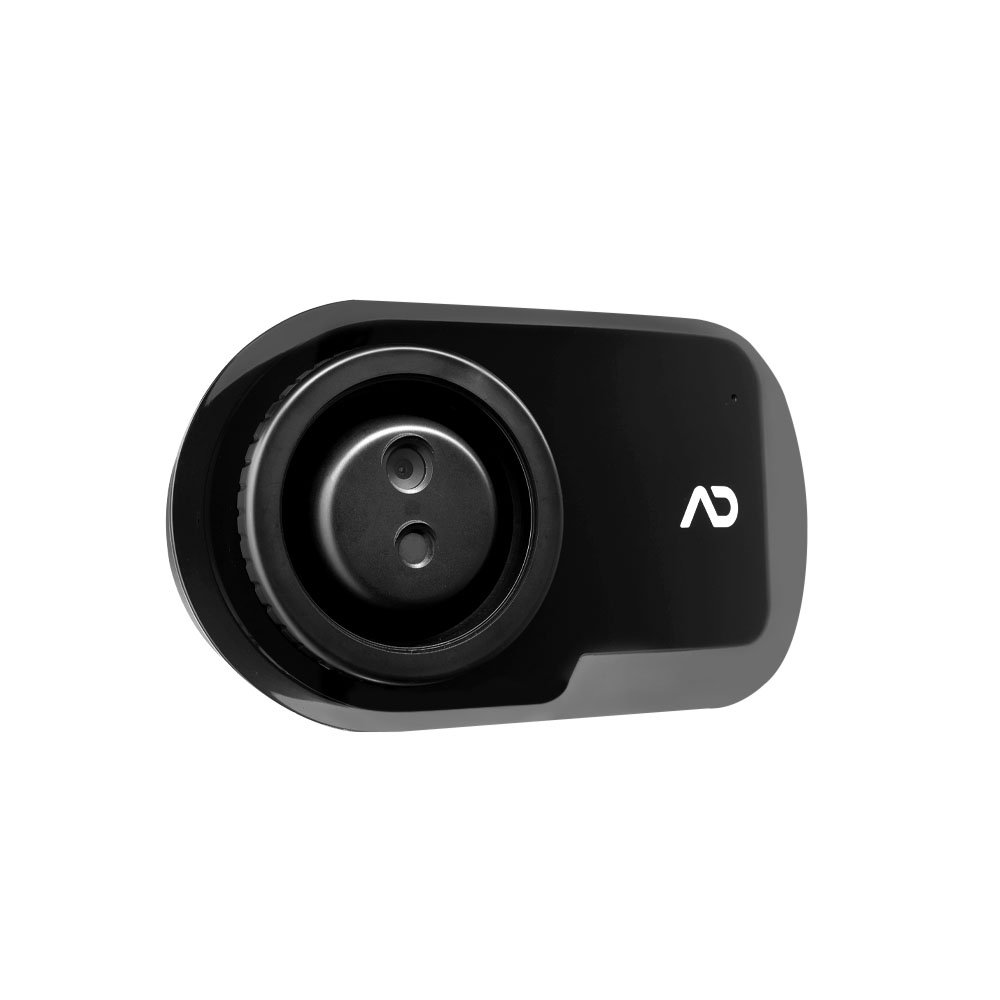

Thermal Screening Camera

DVY24



DVY24

Full color video camera





DVY24

Resolution

2MP(1920×1080 pixels) 16:9

DVY24

Field of View

65°(hor.)x40°(ver.)

DVY24

Frame rate

Max.30fps

DVY24

Video Stream



DVY24

Format

H.264(video camera) / Proprietary(thermal imager)

DVY24

Bitrate


Max. 4Mbps

DVY24

Users


Concurrent 4 clients

DVY24

Thermal imager



DVY24

Resolution



80 x 60 pixels

DVY24

Field of view

51°(hor.)x38.25°(ver.)

DVY24

Frame rate

Max. 7fps

DVY24

Sensitivity

0.1°C / 100mk(NETD)

DVY24

Sensing range


20~100°C

DVY24

Accuracy


± 0.5°C (Use black body in 1meter )

DVY24

System



DVY24

Network

Support RJ45 ethernet connection

DVY24

I/O


Reset button x1 (Return to factory default)

LED indicator (blue) x1 (Normal operation)

LED indicator (yellow) x1 (Network packet act)

DVY24

Power input

5Vdc/2.5A (Micro-USB connector)

DVY24

Operating temp.

0~40°C , ≦95%RH

DVY24

Storage temp.

10~60°C , ≦95%RH

DVY24

Dimensions

101.3mm(H)x65.5mm(W)x43.8mm(D)

4K Smart Signage

Model ST4302 ST5502 ST6502 ST7502 ST8602
Model
Screen Size
ST4302
43″
ST5502
55″
ST6502
65″
ST7502
75″
ST8602
86″
Model
Resolution
ST4302
3840 × 2160 pixels
ST5502
3840 × 2160 pixels
ST6502
3840 × 2160 pixels
ST7502
3840 × 2160 pixels
ST8602
3840 × 2160 pixels
Model
Brightness (typ.)
ST4302
450 nits
ST5502
450 nits
ST6502
450 nits
ST7502
450 nits
ST8602
450 nits
Model
Light life (typ.)
ST4302
30000 hrs
ST5502
30000 hrs
ST6502
30000 hrs
ST7502
30000 hrs
ST8602
30000 hrs
Model
OS
ST4302
Android 8.0
ST5502
Android 8.0
ST6502
Android 8.0
ST7502
Android 8.0
ST8602
Android 8.0
Model
Video input
ST4302

• 2 × HDMI (2.0)

• DisplayPort (1.2)

• VGA

ST5502

• 2 × HDMI (2.0)

• DisplayPort (1.2)

• VGA

ST6502

• 2 × HDMI (2.0)

• DisplayPort (1.2)

• VGA

ST7502

• 2 × HDMI (2.0)

• DisplayPort (1.2)

• VGA

ST8602

• 2 × HDMI (2.0)

• DisplayPort (1.2)

• VGA

Model
USB
ST4302

2 × Type-A (2.0)
1 x Type-A (3.0) for

OPS

ST5502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS
ST6502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS
ST7502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS
ST8602
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS
Model
RJ45
ST4302
1
ST5502
1
ST6502
1
ST7502
1
ST8602
1
Model
OPS Slot
ST4302
1
ST5502
1
ST6502
1
ST7502
1
ST8602
1

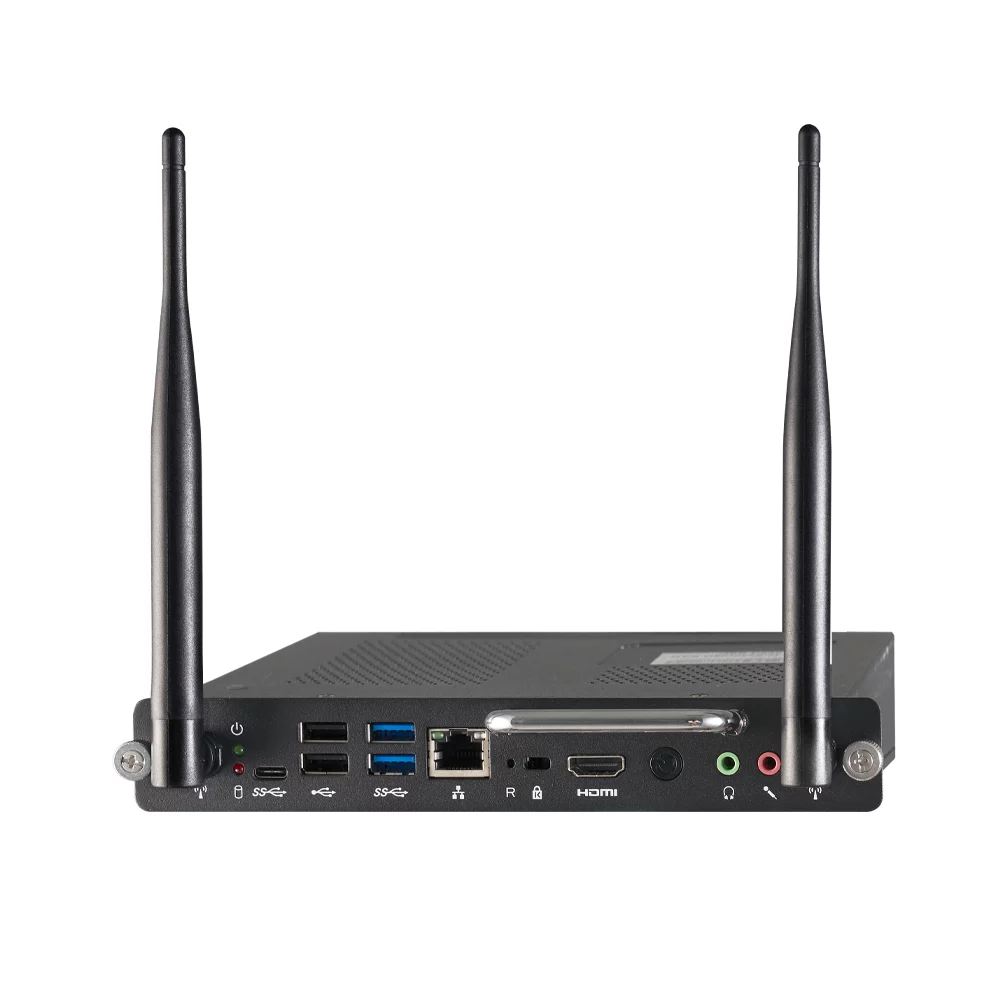

OPS

System



System
CPU



Intel® Kaby lake- U i5 7200U , TDP 15W
System
RAM



DDR4 8G (4GB x2)

System
HDD/SSD



1TB HDD

Easy-to-GO

Physical



Physical

Dimensions (WxHxD) (mm)



548 x 1203 x 679 mm

(compatible with 43/55″ signage)
