Large Conference Room Solution
The DVY23 is a premium pan/tilt/zoom camera that offers ultra-clear video quality with 20x optical zoom and is ideal for large conferences held in large spaces. The 20x zoom is double the industry standard.

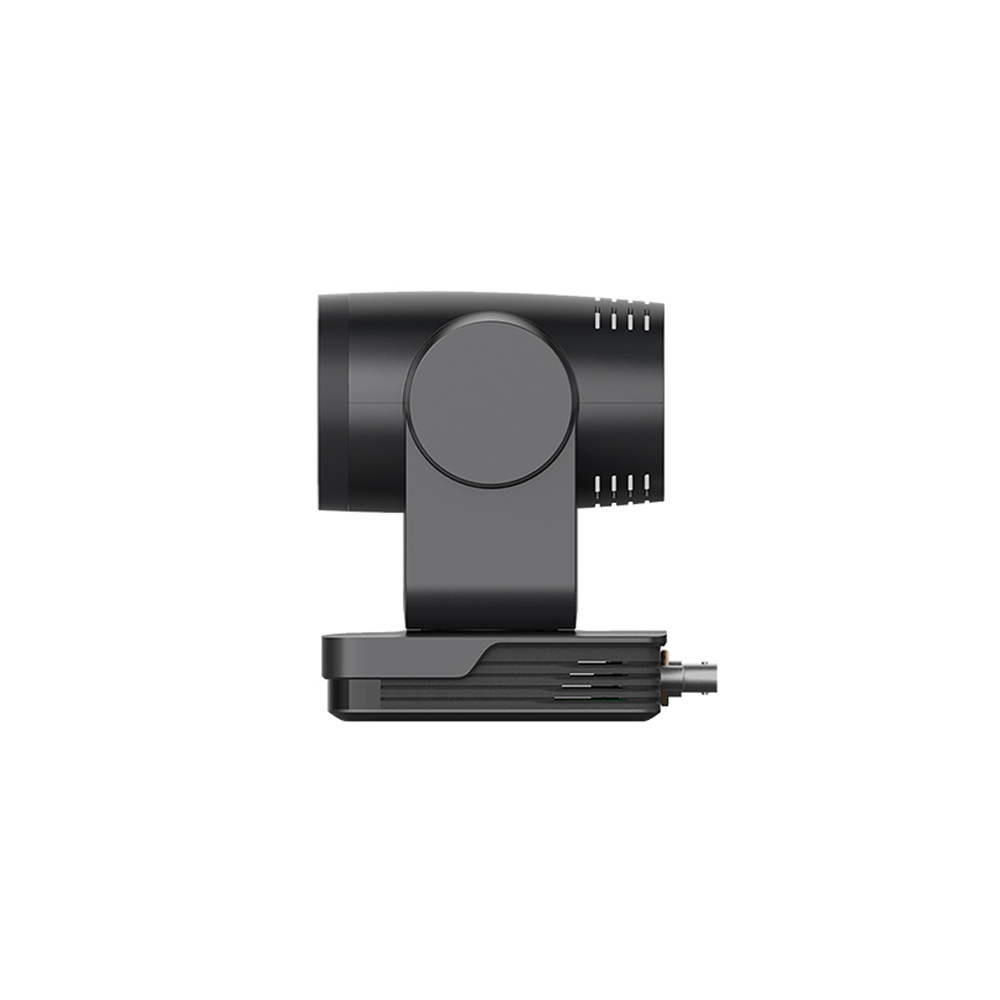

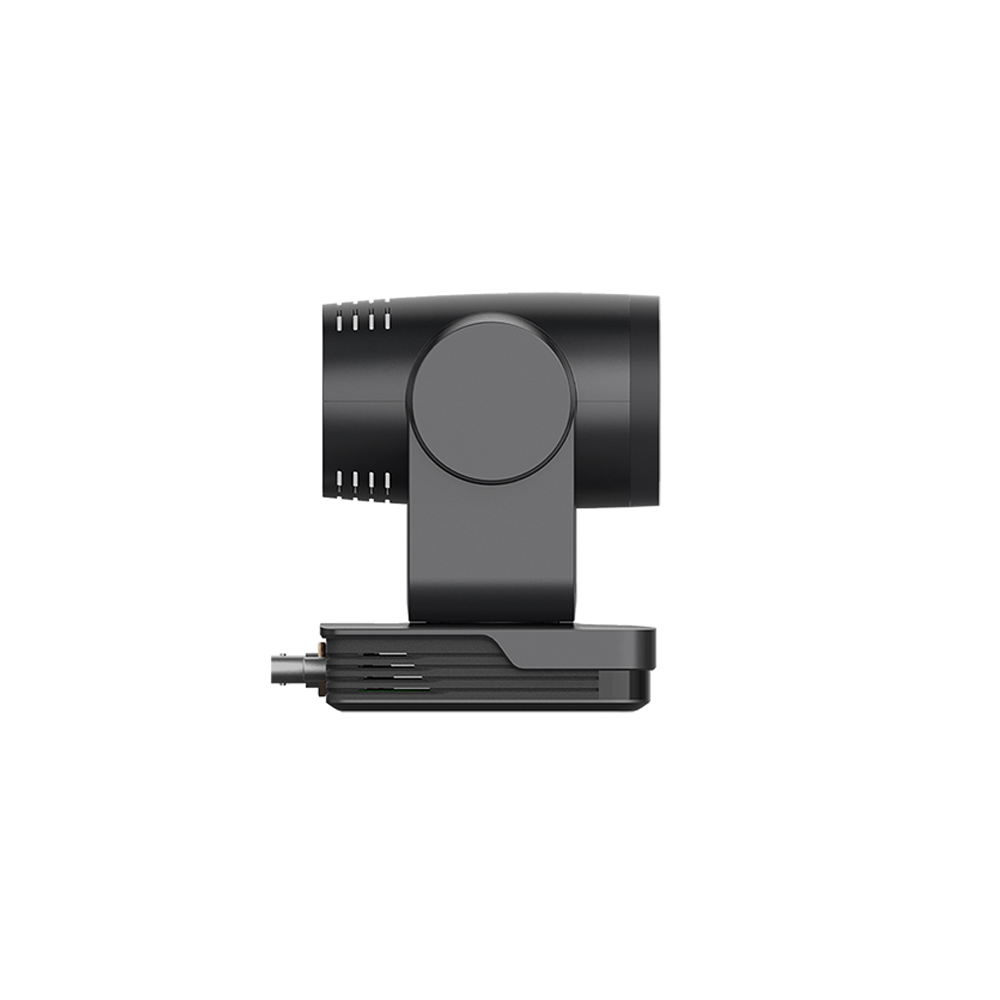

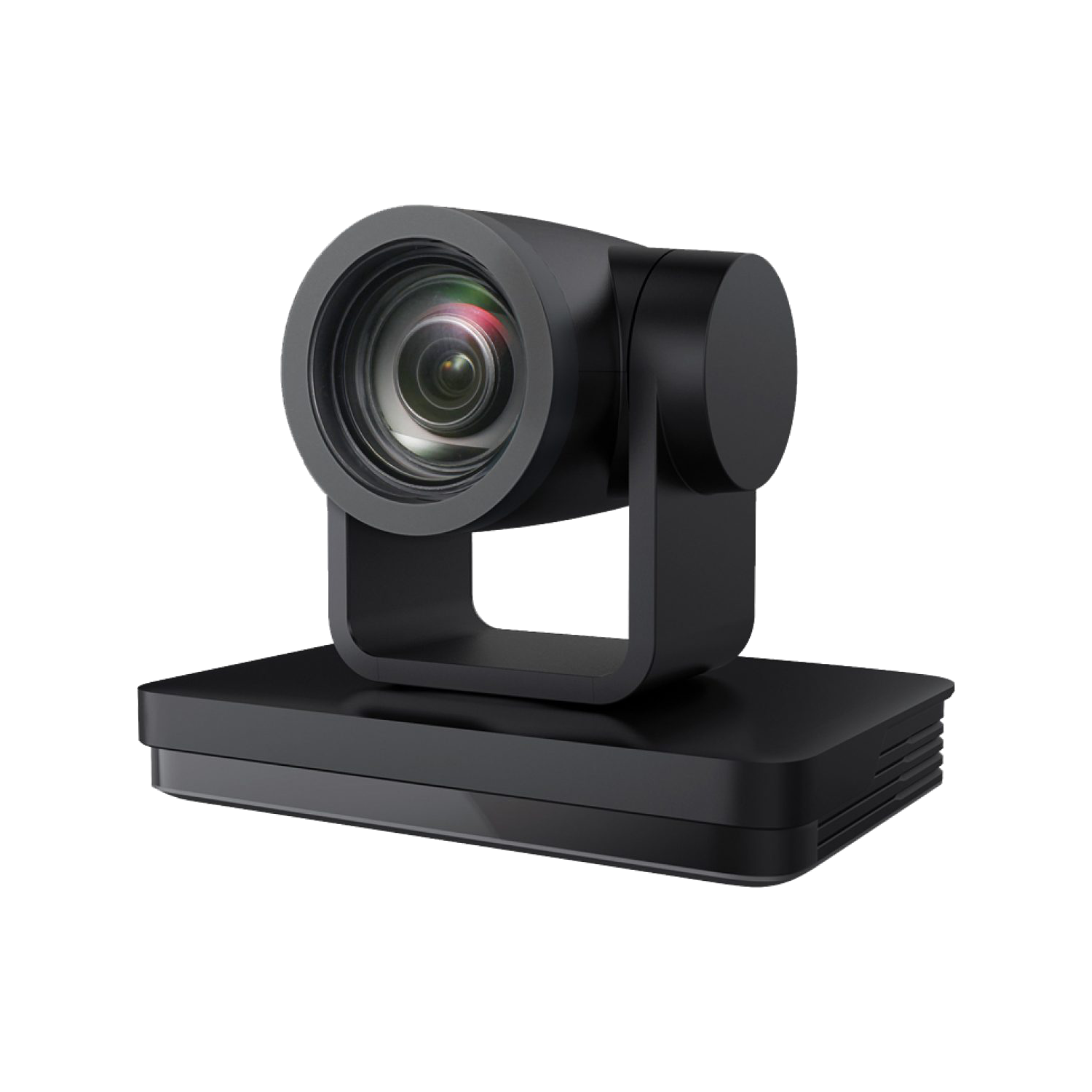

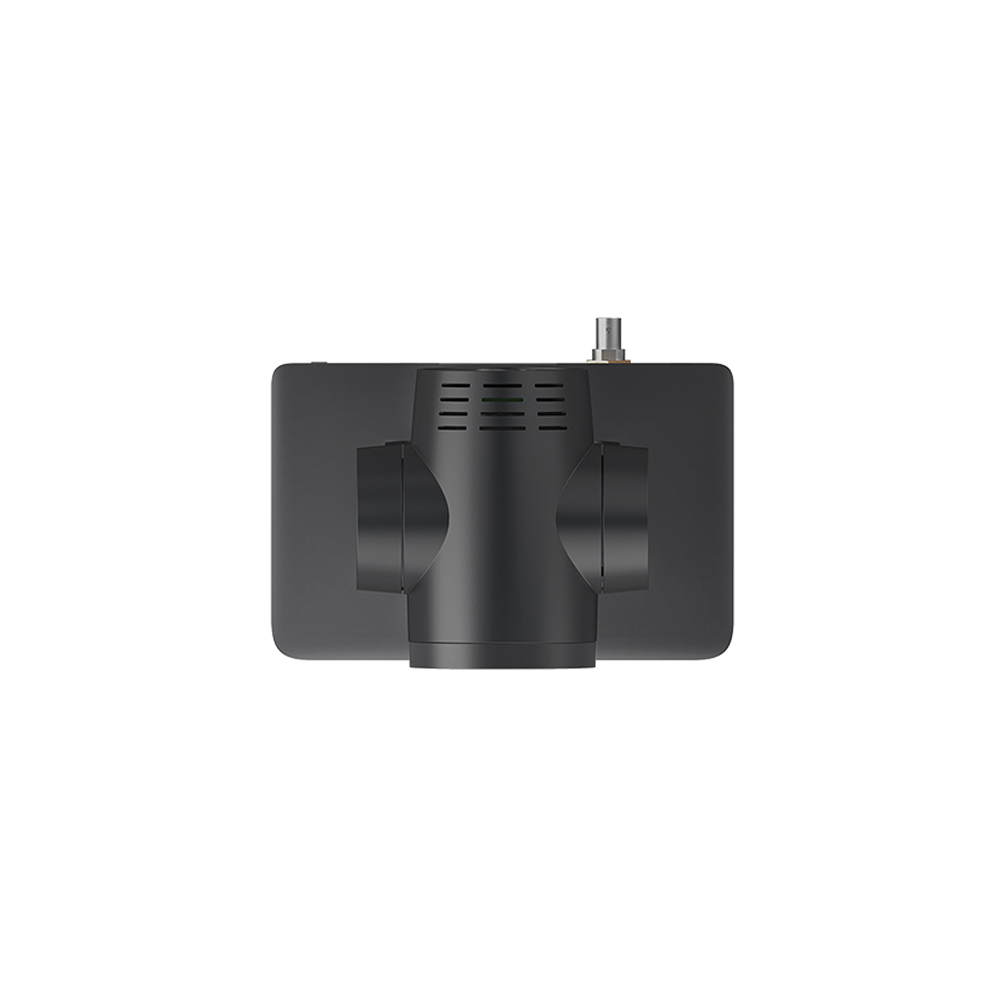

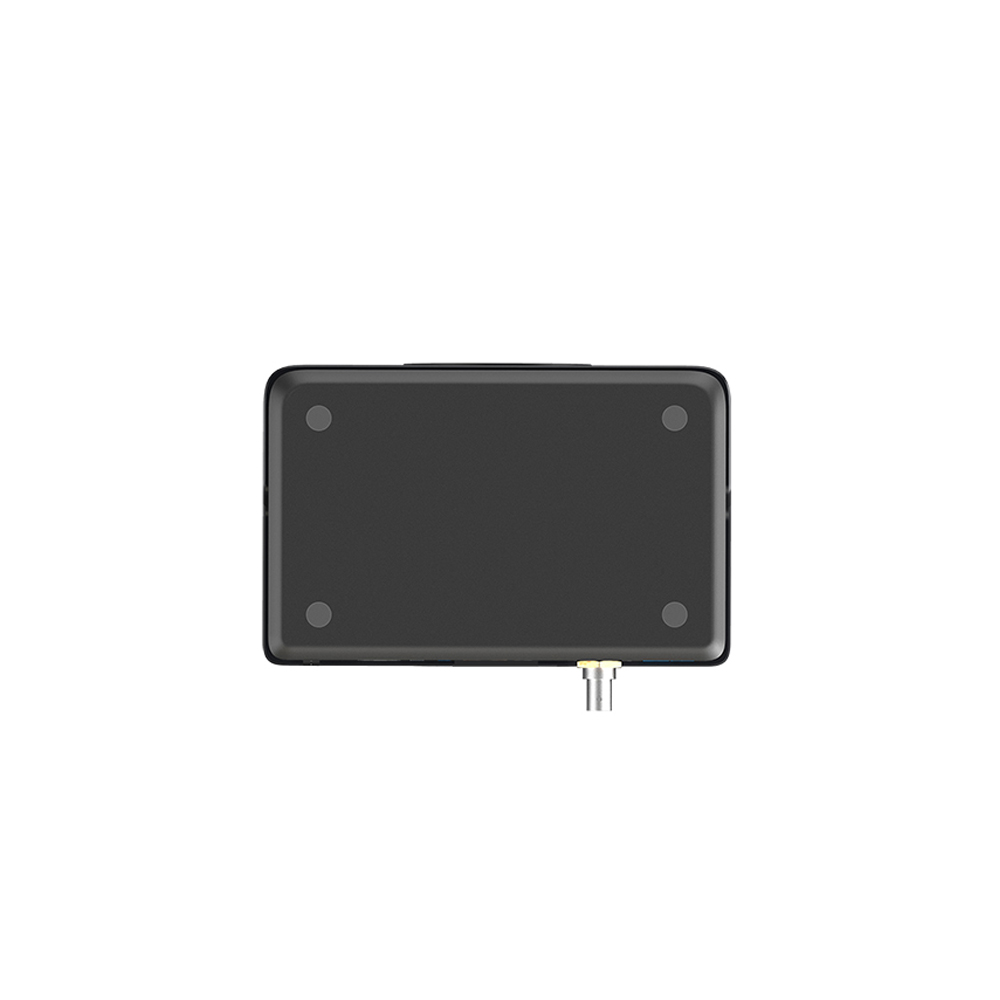

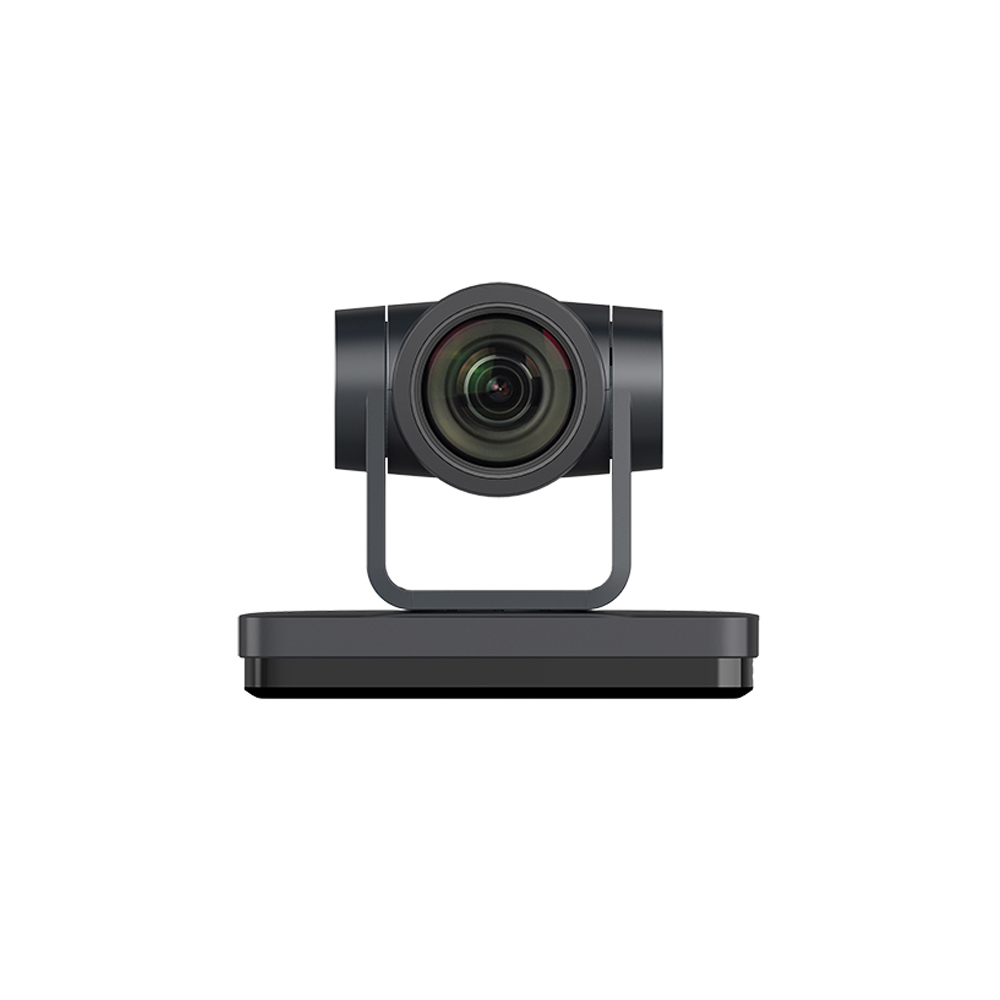

Benq DVY23 1080P PTZ Conference Camera
Ultra-detailed 20x optical zoom
Pan: ±170° | Tilt: -30° to +90°

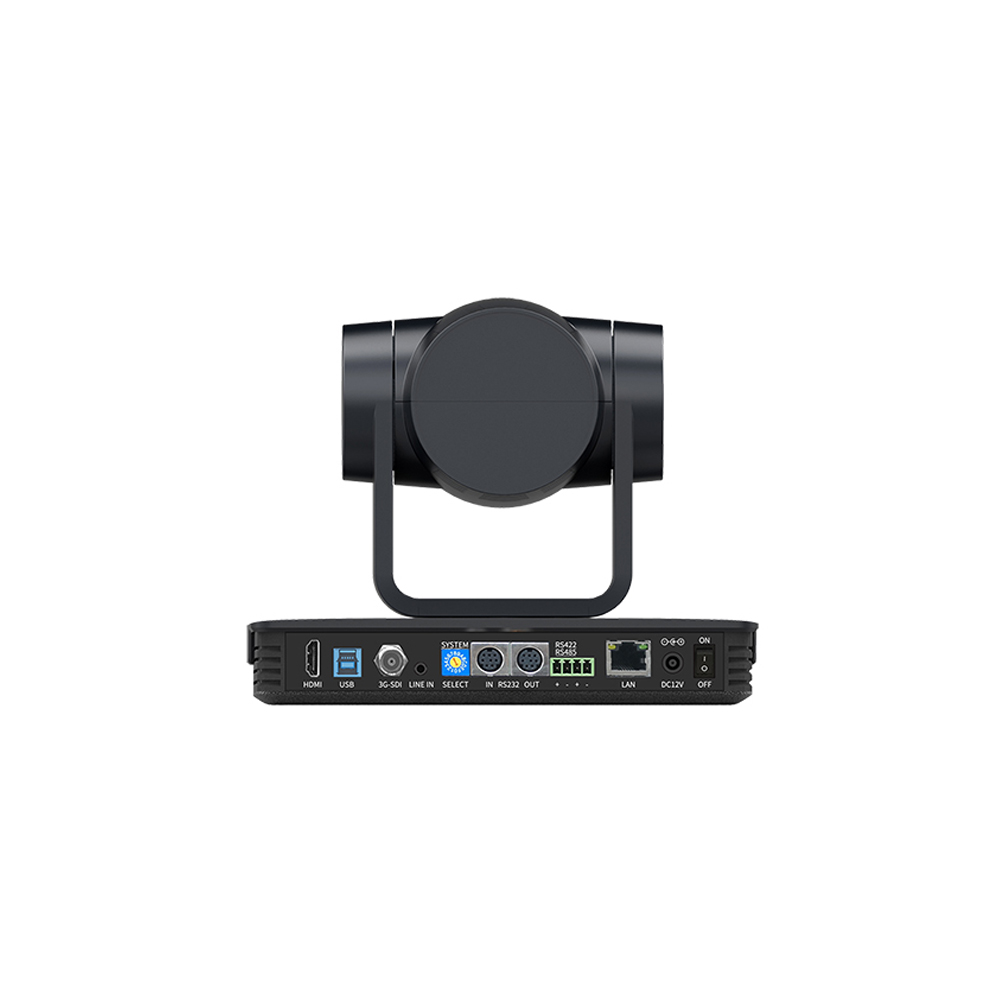

Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
Streaming: RTSP and RTMP
Control ports: RS232, RS422, RS485, LAN, and remote control
Specification: Benq DVY23 1080P PTZ Conference Camera
|
All Specifications
Dimensions
Dimension (H × W × D)
150 mm × 181 mm × 116 mm
(5.90 in × 7.13 in × 4.55 in)
Weight
1.38 kg (3.04 lbs)
Sensor
1080P FHD
Resolution
1080p, 720p, SD @ 30 fps
Field of view
Horizontal: 55°
Vertical: 31°
Diagonal: 63°
Zoom
Optical: 20x
Digital: 10x
Pan | Tilt
±170° | -30° to 90°
Pan | Tilt speed
100°/sec | 45°/sec
Focus
Auto and manual
Preset positions
10 with remote, 255 with LAN
Lens type
Glass
Low light performance
0.5 Lux
Input
3.5 mm
Output
HDMI, Ethernet, SDI
Output
USB 3.0, HDMI, Ethernet, SDI
RJ-45
1GbE port, Power over Ethernet
In | Out
RS232, RS422, RS485 | RS232
Voltage
12 V
Operating systems
Windows 7 (1080P/720P), Windows 8.1, Windows 10, macOS™ 10.10, Linux (UVC), and later
BenQ Displays
CP01K, CS01, SL02K, ST02, RP02, RM02K, RE01, and later models
USB
Plug and play
Included
• 1080P FHD PTZ conference cam
• Remote control
• Camera mount (built-in)
• USB 3.0 Type-B
• Power supply
