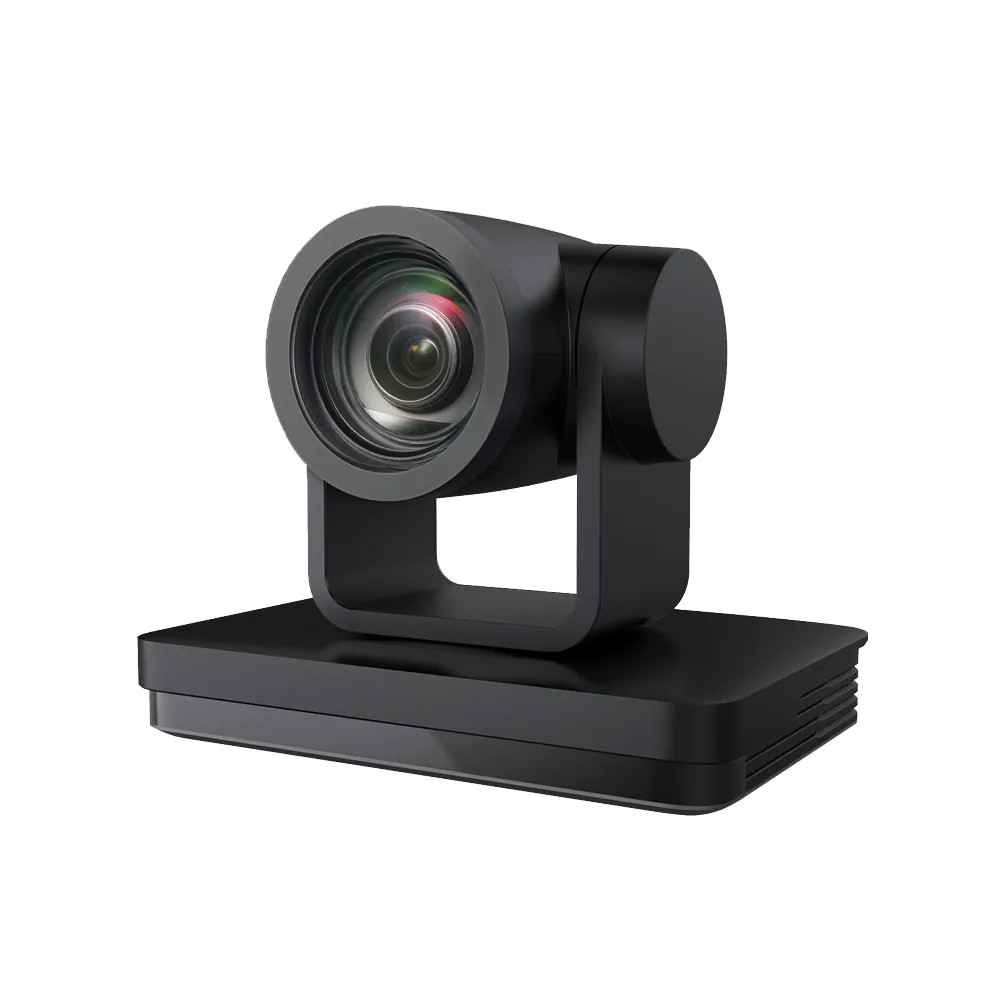

BenQ DVY23 20x zoom conference camera

Ultra-detailed 20x optical zoom

Pan: ±170° | Tilt: -30° to +90°
Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
Streaming: RTSP and RTMP
Control ports: RS232, RS422, RS485, LAN, and remote control

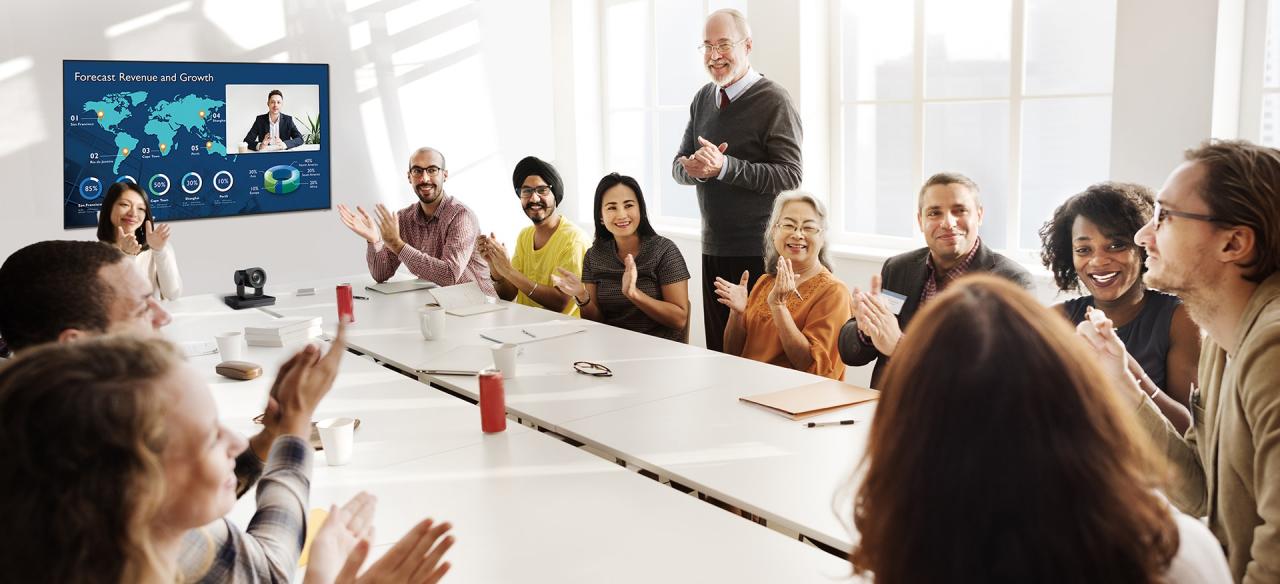

Big meeting, meet better camera

The DVY23 is purpose-built for large conference rooms, ensuring that every meeting attendee is on screen and in focus.

Cover every angle

The DVY23’s whisper-quiet, high-precision motor swiftly pans, tilts, and zooms for total room coverage.

Focus on the details

Perfect for the large spaces, the 20x optical zoom allows you to capture the entire stage or clearly focus in on important objects.

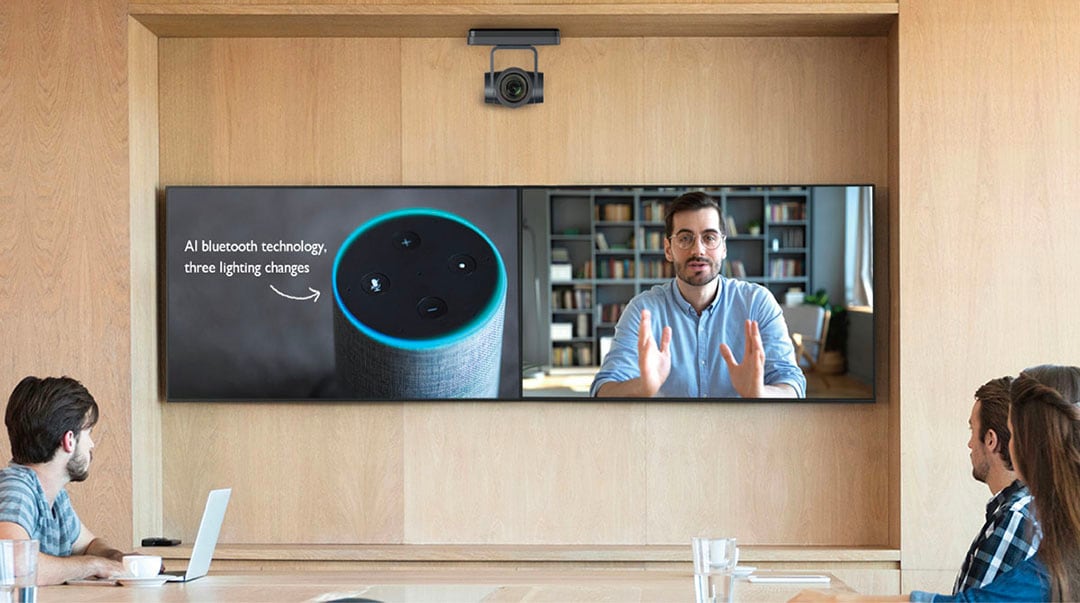

Experience stability

The DVY23 has a built-in gravity sensor which automatically adjusts the video image depending on your camera orientation.

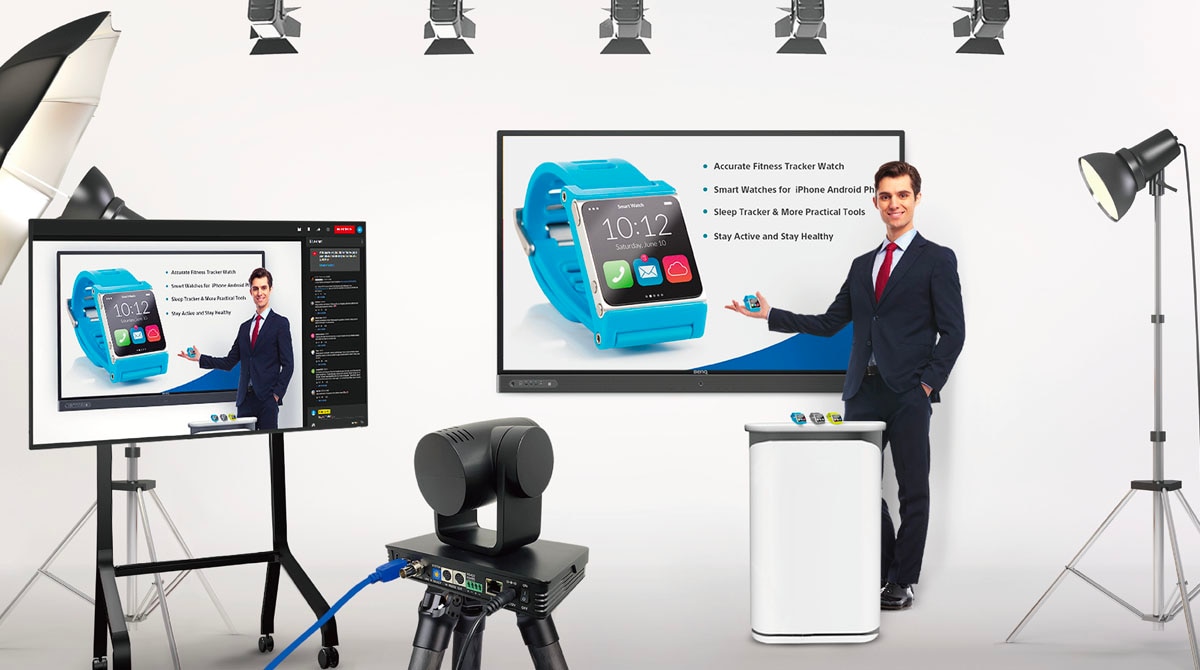

Livestream with ease

With support for multiple streaming sites, you can easily broadcast your feed via platforms like YouTube or Facebook Live.

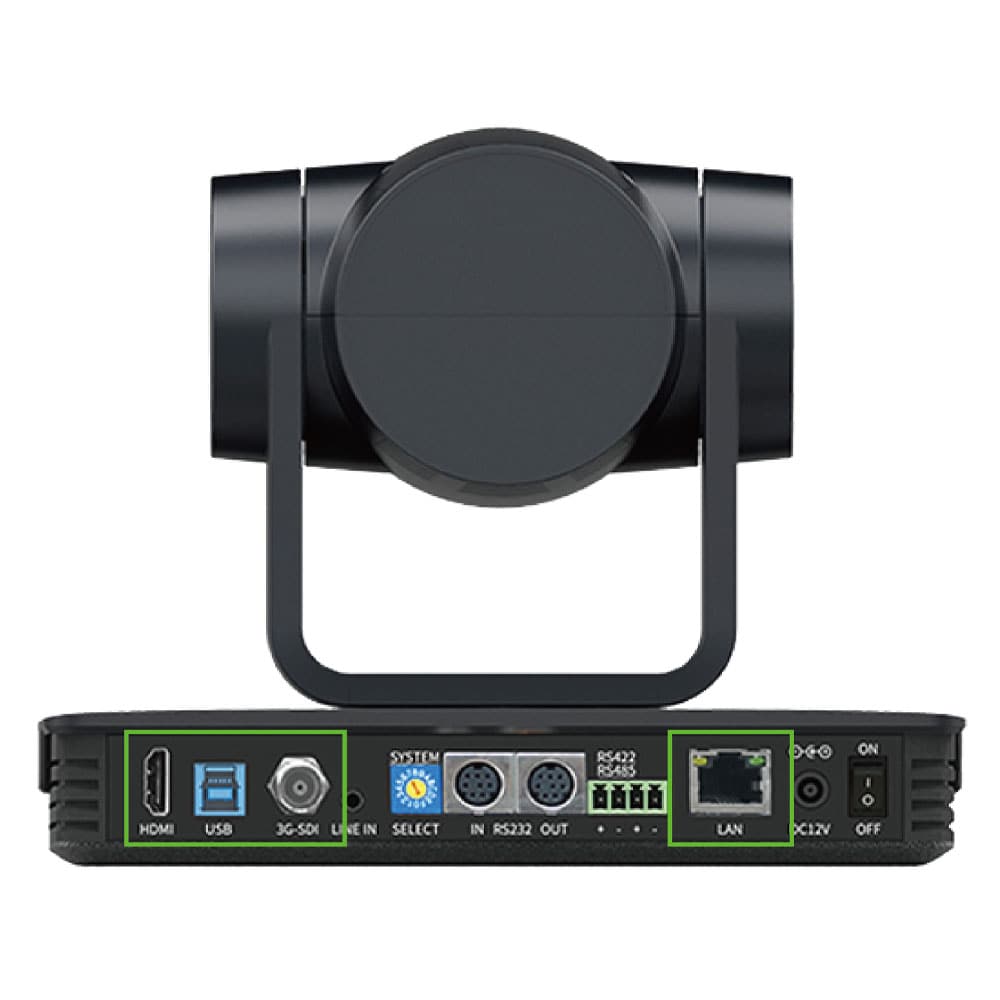

Output on any display

Packed with ports for any type of connector, the DVY23 lets you output video content to whichever display system you’re using.

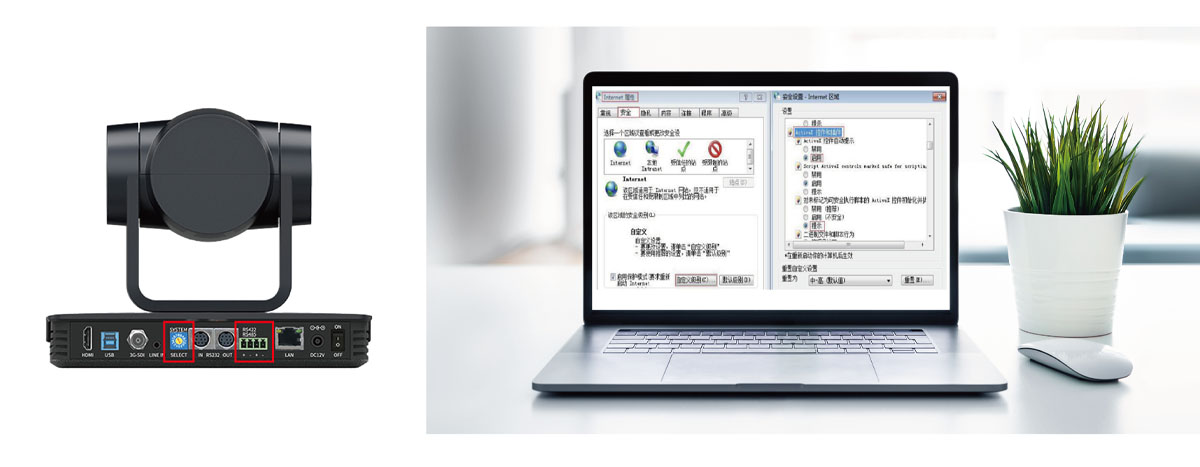

Control remotely on any network

Remote control is a breeze in any network setup. The DVY23 has ports that match a variety of popular control interfaces.

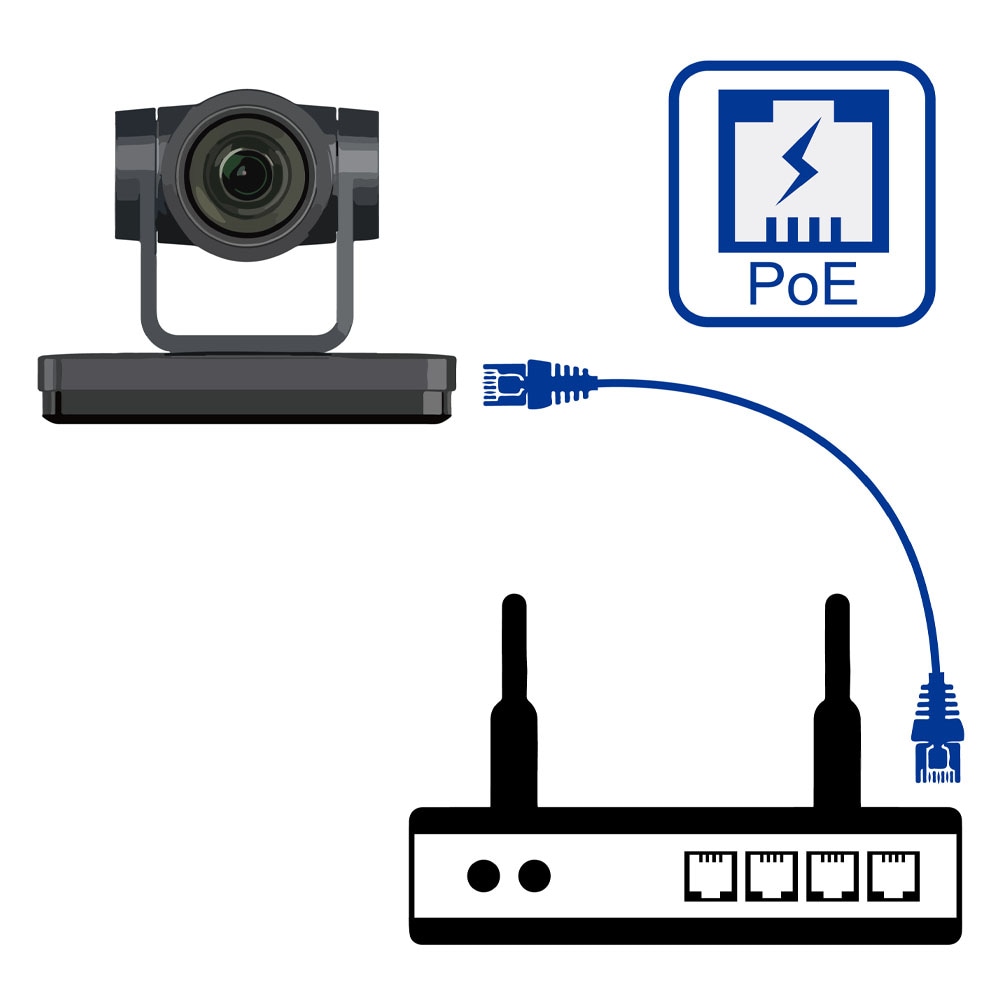

Tangle-free transmission

No more pesky wires. Since the DVY23 is a PoE device, you only need one cable to power up your camera and transmit videos.

Specification: BenQ DVY23 20x zoom conference camera

Applications

Resolution

,

All Specifications

Audio

Input

3.5 mm
Output

HDMI, Ethernet, SDI

Dimensions

Dimensions (H × W × D)

150 mm × 181 mm × 116 mm
(5.90 in × 7.13 in × 4.55 in)
Weight

1.38 kg (3.04 lbs)

Camera

Sensor

1080P FHD
Resolution

1080p, 720p, SD @ 30 fps
Field of view

Horizontal: 55°
Vertical: 31°
Diagonal: 63°
Zoom

Optical: 20x
Digital: 10x
Pan | Tilt

±170° | -30° to 90°
Pan | Tilt speed

100°/sec | 45°/sec
Focus

Auto and manual
Preset positions

Remote: 10
LAN: 255
Lens type

Glass
Low light performance

0.5 Lux

Video

Output

USB 3.0, HDMI, Ethernet, SDI

Ethernet

RJ-45

1GbE port, Power over Ethernet

Control interface

In | Out

RS232, RS422, RS485 | RS232

Compatibility

Operating systems

Windows 7 (1080P/720P), Windows 8.1, Windows 10, macOS™ 10.10, Linux (UVC), and later
BenQ Displays

CP01K, CS01, SL02K, ST02, RP02, RM02K, RE01, RP01K, ST01K, and later models

Package Contents

Included

• 1080P FHD PTZ conference cam
• Remote control
• Camera mount (built-in)
• USB 3.0 Type-B
• Power supply
