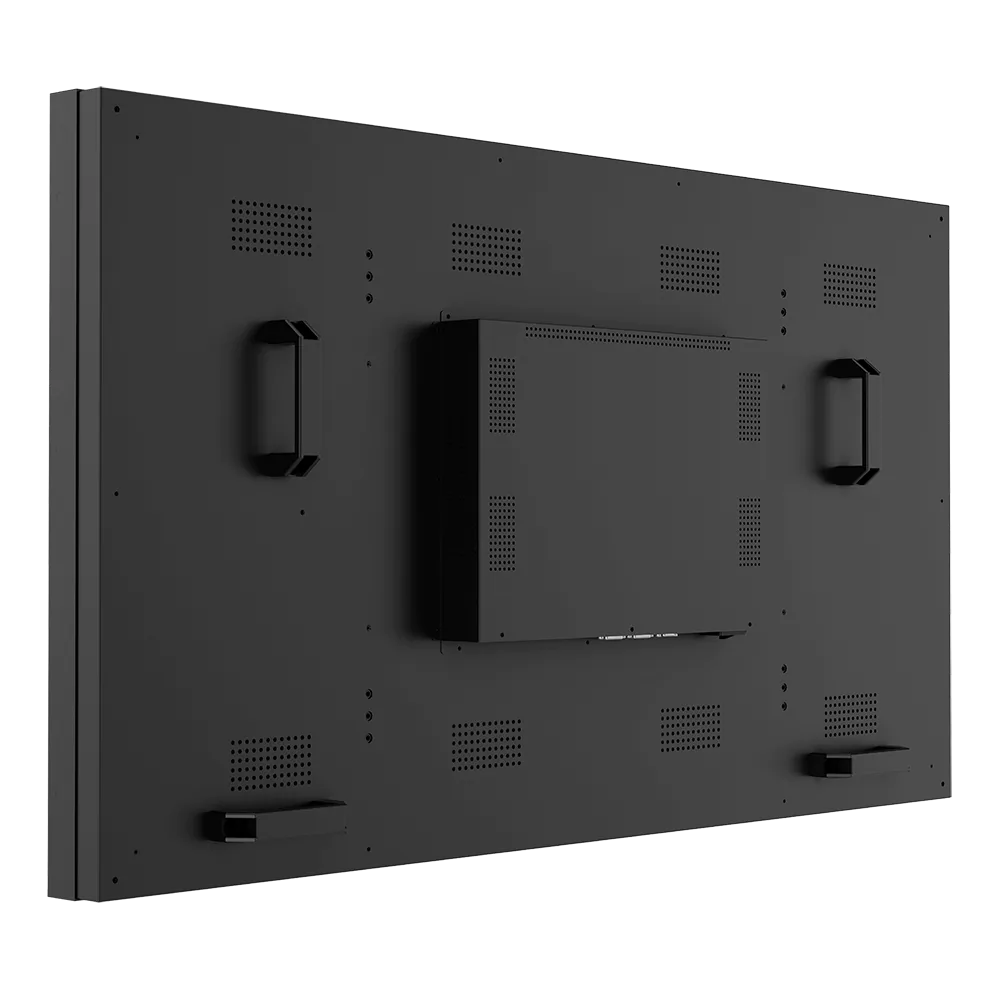

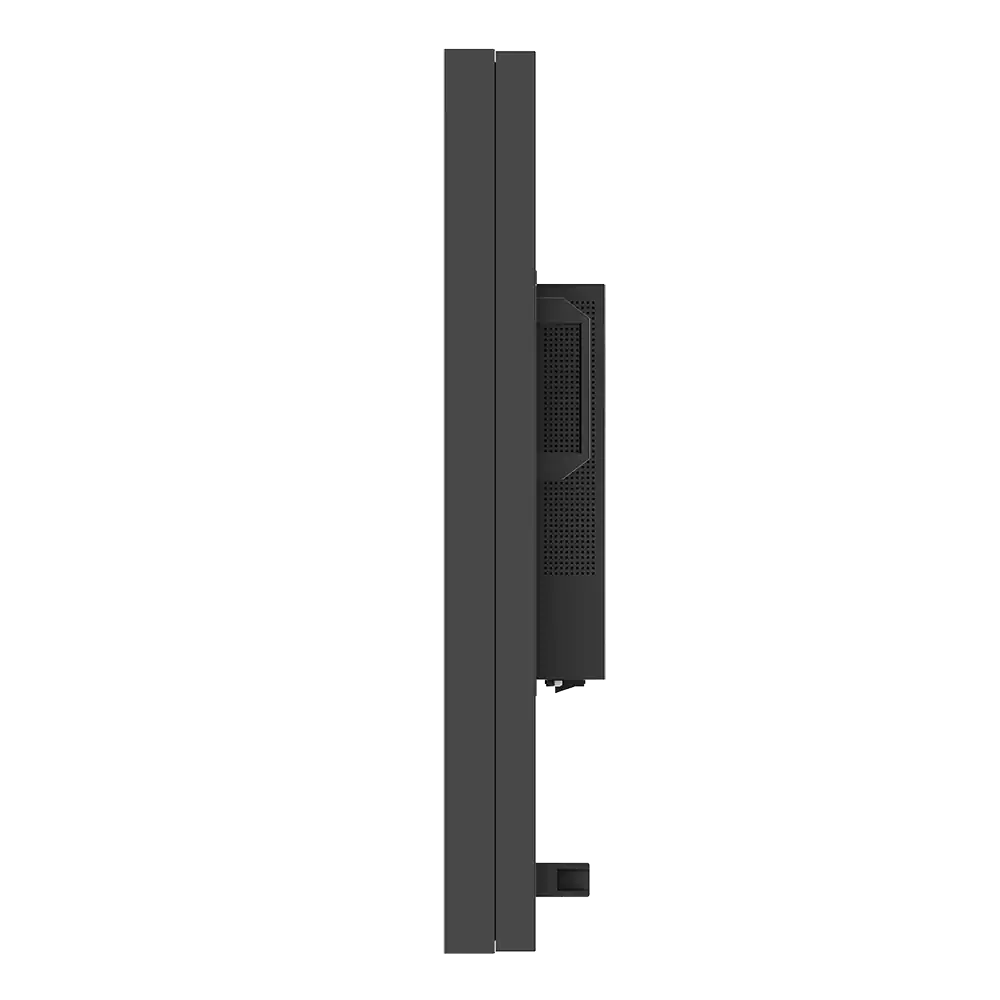

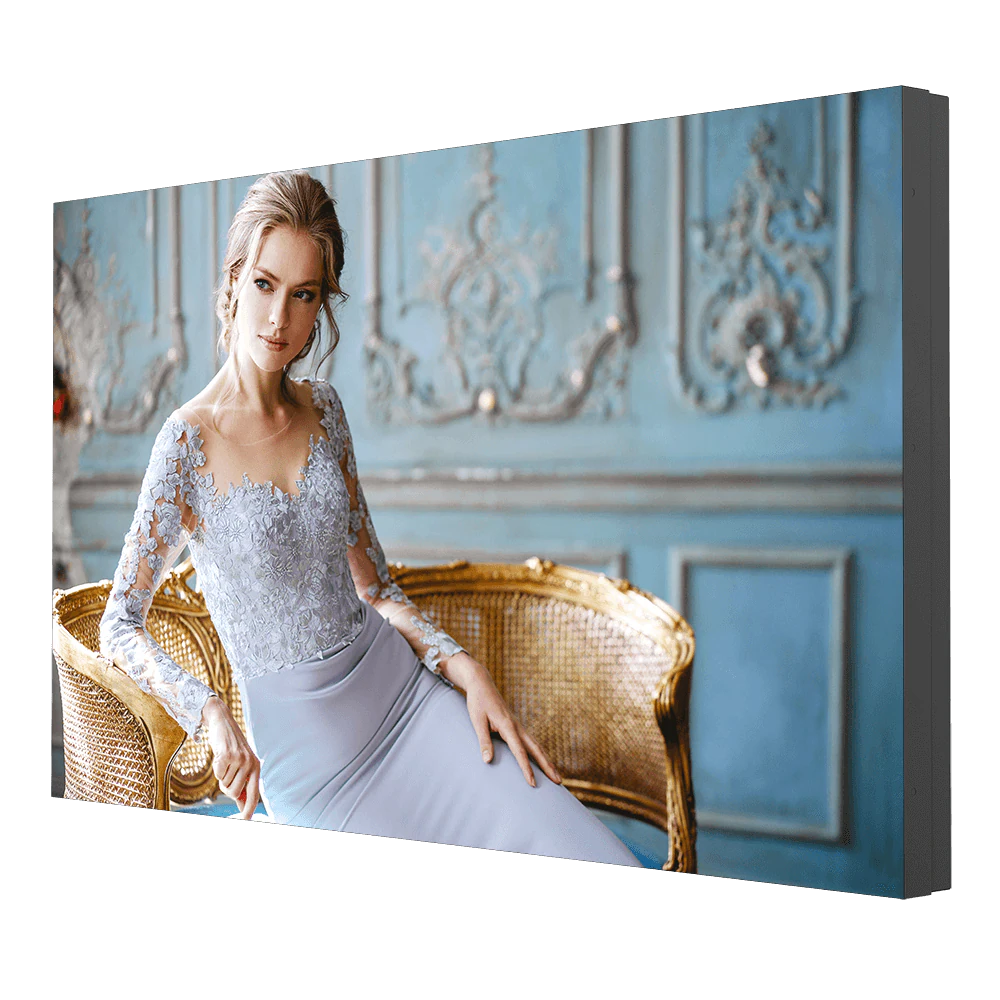

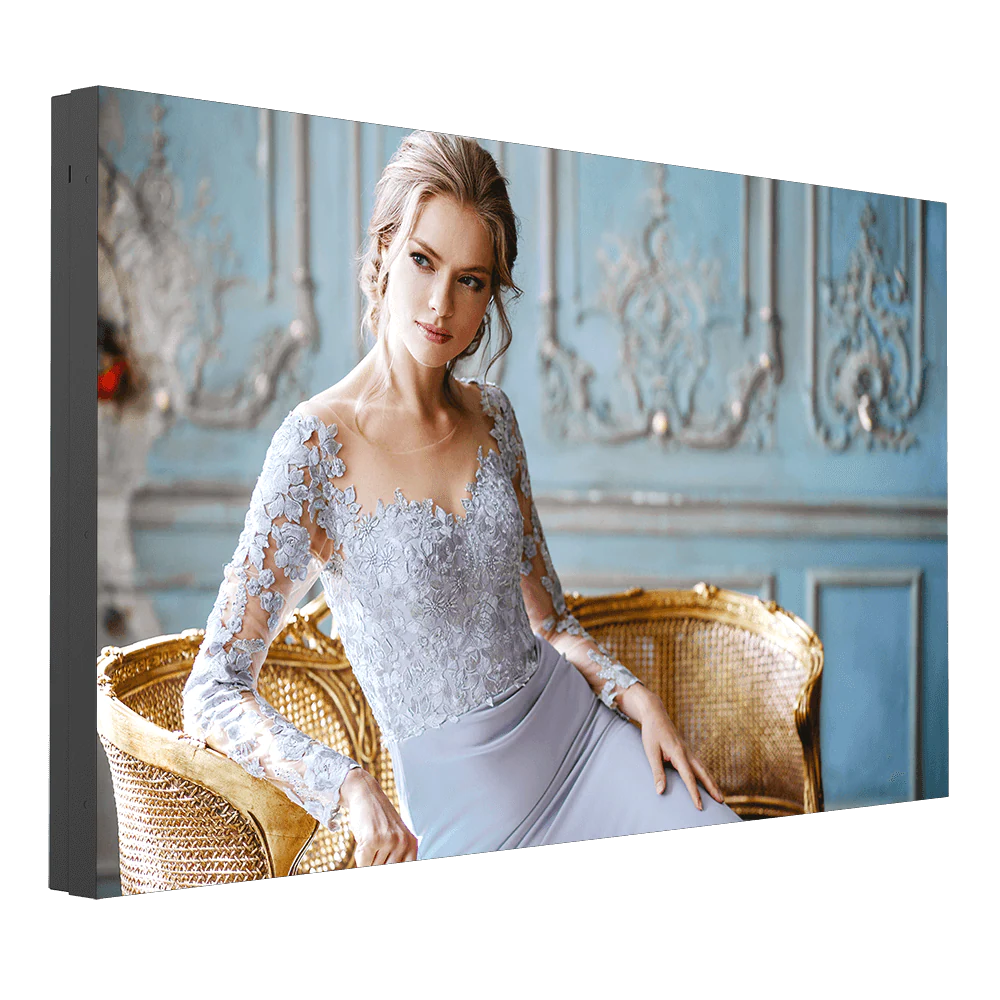

BenQ 55″ Video Wall Display – PL5502

0.44 mm bezel design, the thinnest in the industry

4K UHD clarity with 2 × 2 DVI daisy chain
Exclusive color calibration and configuration software
24/7 non-stop operation and portrait or landscape mode
Hassle-free device management

0.44 mm Skinniest bezels in the industry

0.44 mm Thinnest bezels in the industry

Multiple panels, one seamless image

If you can’t see them, are they really there? Boasting a remarkably-narrow 0.44 mm even bezel design (0.88 mm bezel-to-bezel), the PL5502 produces videos walls so seamless that audiences won’t even notice the bezels.

Wider viewing angles, more uniform picture quality

The PL5502’s wider vertical and horizontal viewing angles ensure that the displays can be clearly seen by audiences regardless of where they’re standing.

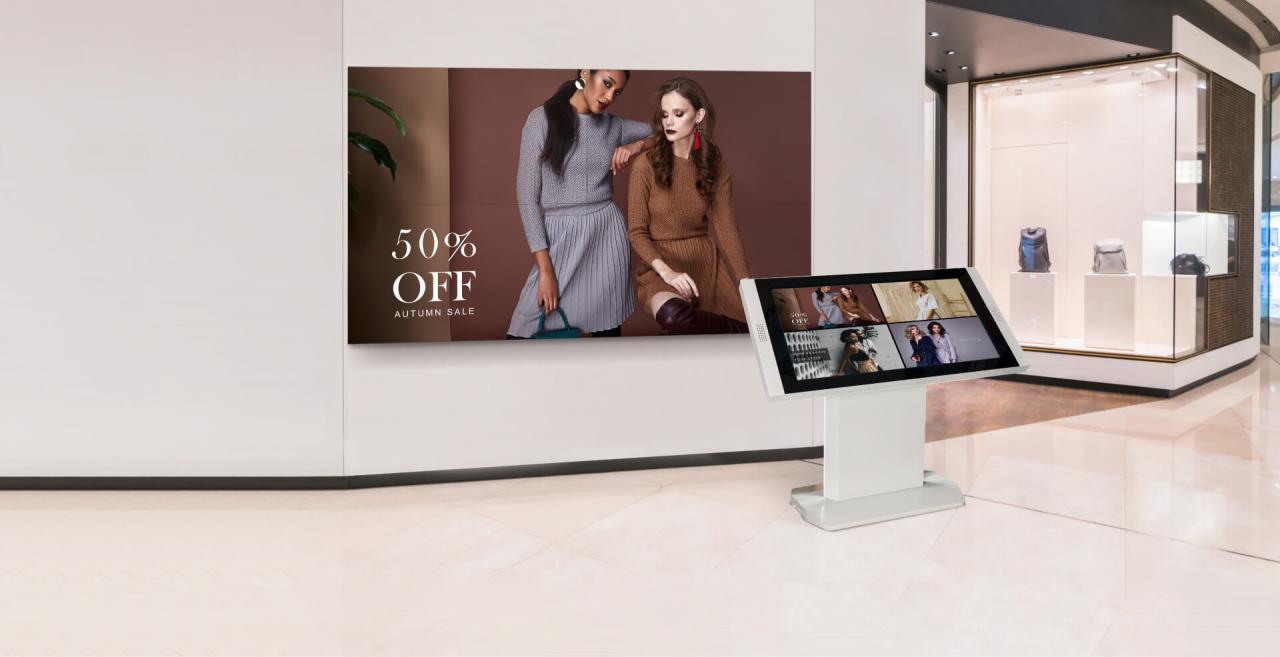

A large-scale interactive experience

Pairing an interactive touch display with a PL5502 video wall offers audiences an interactive and immersive experience on a large scale. What’s playing on the video wall adjusts to how the viewers interact with the touch display.

Hassle-free content management

Easy 4K UHD content creation and management

Easy 4K UHD content creation and management

PL5502 is equipped to display stunning 4K UHD contents across a 2×2 video wall installation via DVI daisy chain. To further facilitate content management, the PL5502 is X-Sign software supported, allowing you to easily create and enrich your 4K content with over 100 built-in templates.

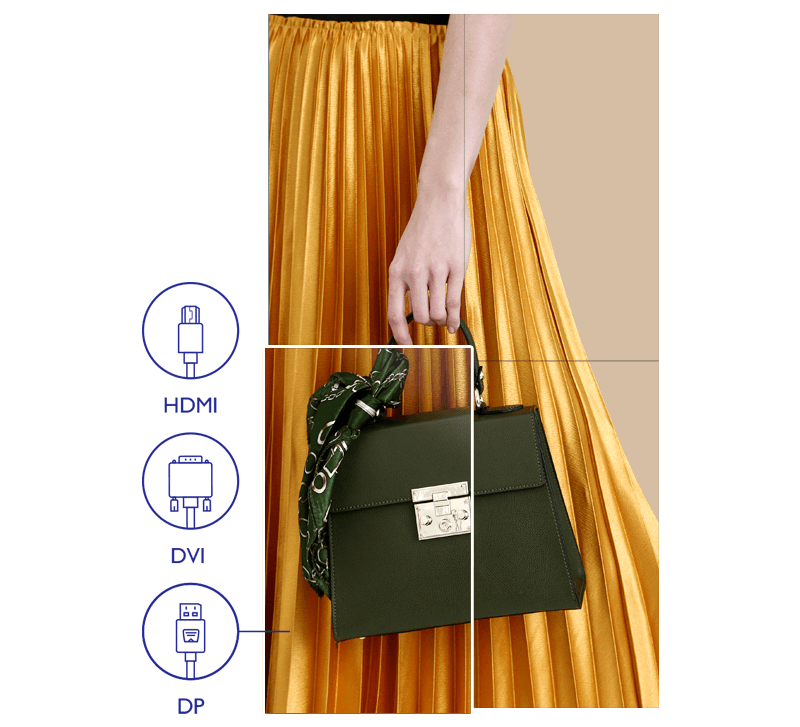

Multiple input sources for flexible connectivity

Multiple input sources for flexible connectivity

Unlike other video walls in the market that have limited input support, the PL5502 lets you display images through DVI, DisplayPort, and HDMI. It uses DVI for daisy-chaining, ensuring consistent, uninterrupted output.

Display Content with Ease

Display Content with Ease

Plug a USB flash drive into the PL5502 to instantly play multimedia content. After inserting the USB flash drive, you can precisely arrange a playlist and schedule content playback times so they fit your business’s needs.

Effortless display management

Color calibration and video wall management

Color calibration and video wall management

BenQ’s color calibration software lets you unify video wall color profiles & setup video wall configuration with Windows based device. You can effectively complete video wall settings and finish the color calibration process in less than no time.

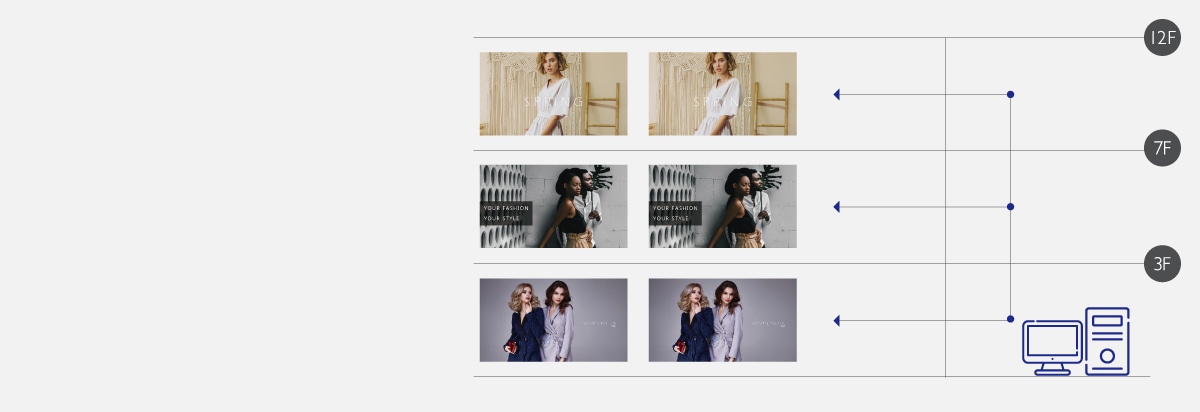

DMS Local

DMS (Device Management Solution) Local is a Windows-based device management solution that allows IT staff to maintain multiple devices on the same LAN.

MDA

MDA (Multiple Display Administrator) runs on Microsoft Windows and allows IT staff to control their displays remotely via RS-232.

Specification: BenQ 55″ Video Wall Display – PL5502

Projectors
Applications

Contrast-ratio

Ratio

Resolution

IFP
Backlight Type

Brightness-Nits

Display

All Specifications

Panel

Screen Size

55″
Contrast Ratio (Typical)

1200:1
Display Orientation

• Landscape
• Portrait
Usage (Hour/Day)

24 hours/7 days
Active area (W × H)

1209.6 X 680.3 mm
Resolution

1920 × 1080 pixels
Brightness (Typical)

500 nits
Viewing angle (H × V)

178°/178°
Light Life (Typical)

50000 hrs
Aspect Ratio

16:9
Backlight

Direct LED

Input/Output

Video input

• 2 × HDMI (2.0 x 1, 1.4 x 1) • DisplayPort (1.2) • VGA • DVI
Video output

DVI
RJ45

1
USB

1 × Type-A (2.0)
RS232

1

Mechanical

Weight (Without / With Packing) (kg)

22.5 kg/33.6 kg
Dimension (W×H×D) (mm)

1210.5 x 681.2 x 121.1 mm
Bezel Width (top/bottom/left/right) (mm)

0.44/0.44/0.44/0.44 mm
VESA mount

600 x 400 mm, 4-M6*40L

Environment

Operation Temperature

0°C to 40°C
Storage Temperature

-20°C to 60°C
OSD languages

8

SW support

X-Sign

Yes
Device Management Solution (DMS)

Local

Package/Accessory

Remote Control

1
Power Cord (By Region)

6
Quick Start Guide

1
HDMI Cable

1
DVI Cable

1
DP Cable

1
RS232 cable

RJ45 to RS232 + RS232 to USB
User manual

Online

Power

Power Consumption (typical/standby )

225 W/0.5 W
Power

AC 100V-240V, 50/60Hz
Switch

1
