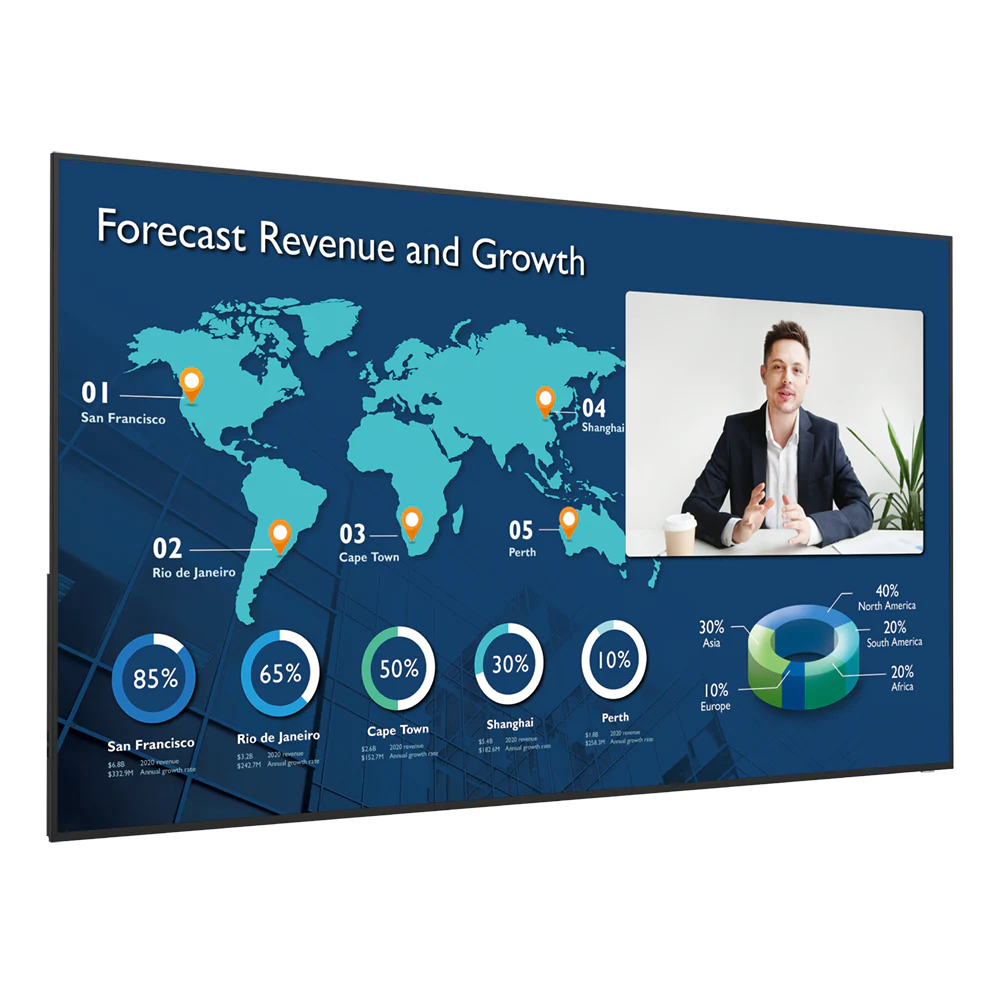

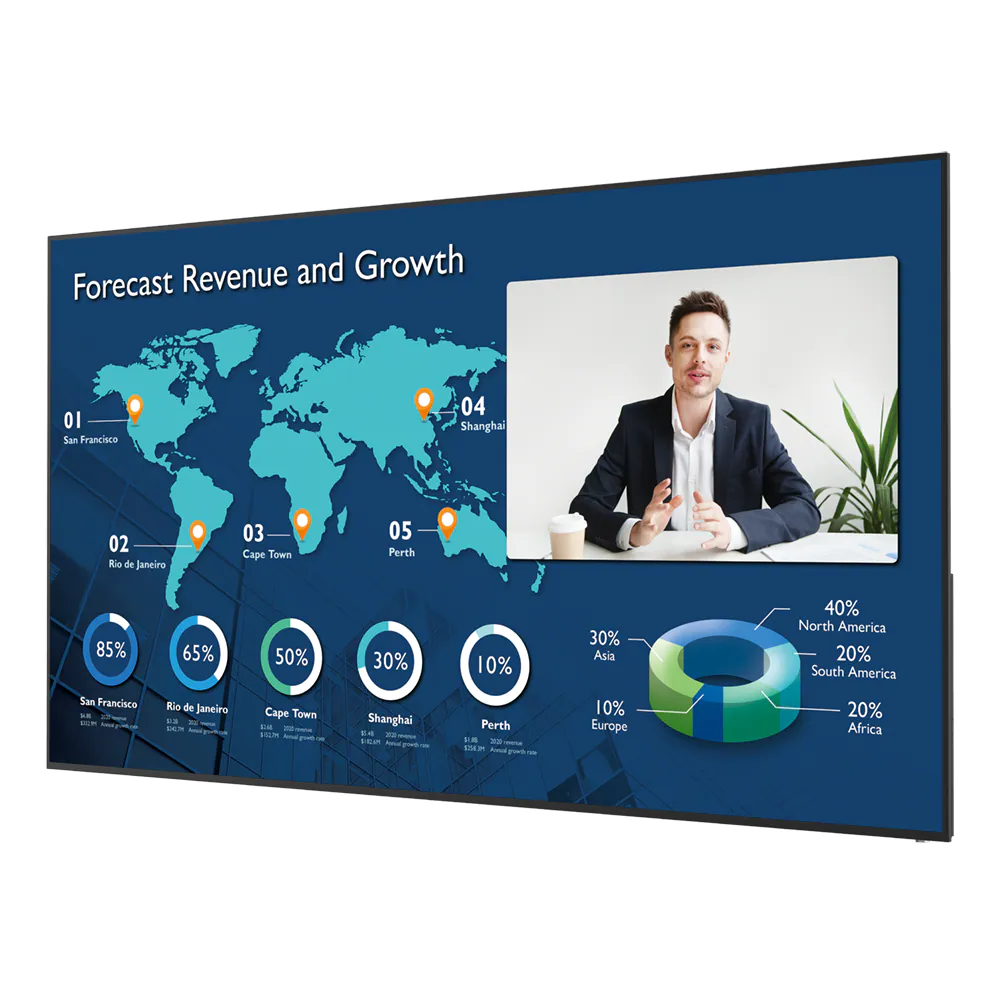

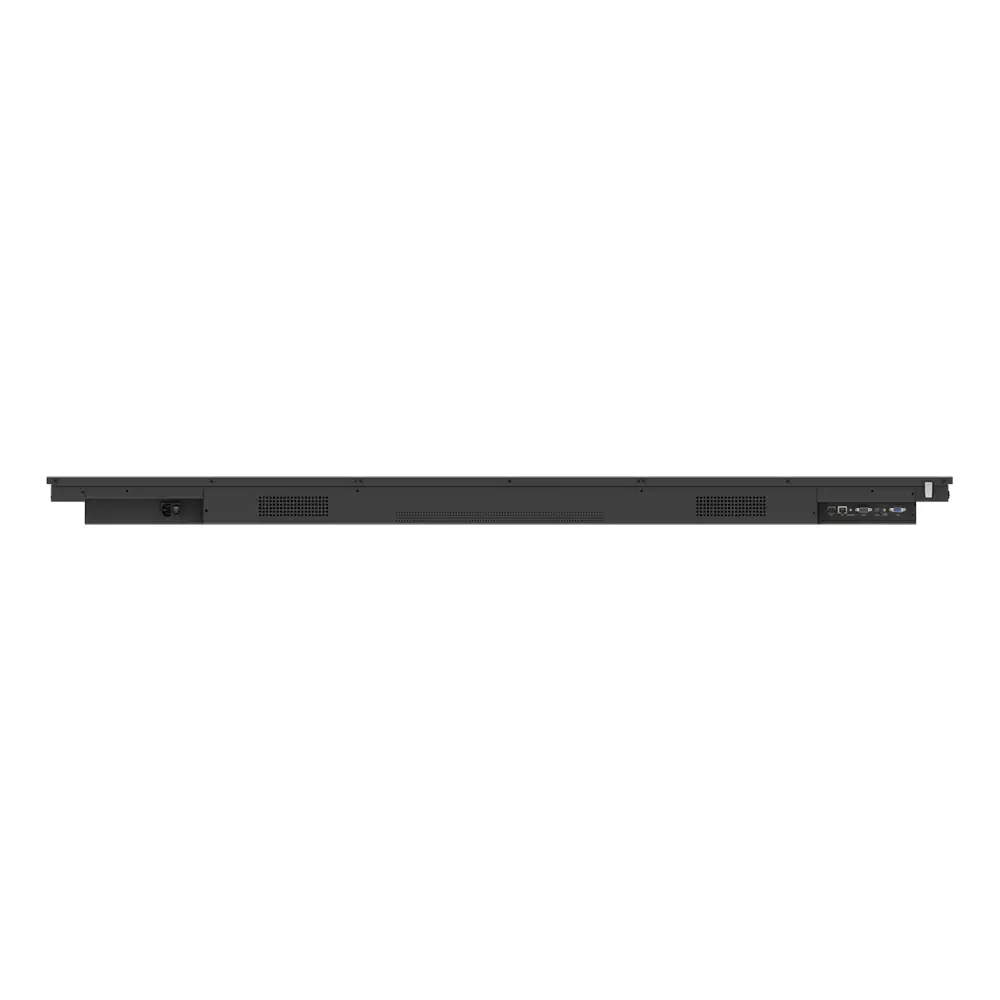

BenQ 75" Corporate Display - CS7501

Cast and control your presentations with ease

Use your preferred video conferencing app
Collaborate with Duo OS, Duo Windows, and EZWrite
Sync and display the meeting room schedule
Manage devices and push notifications

Engage your audience
Get more work done

With the right display, it’s easy to grab your audience’s attention. More than just crisp visuals,
the CS series offers tools and features that simplify setups and foster highly collaborative discussions.

We’ve made it easy for you to present

We’ve taken out all things that can steal your time and take focus off your presentation.
The CS simplifies meeting preparations by removing the need for wires, drives, and even laptops.

Flawless wireless projection
Tired of cables? With the CS, you can wirelessly share up to four* screens using InstaShare 2. Viewed on a 4K anti-glare display with 450 nits of brightness, you see everything in great detail.
*Sharing of up to 9 screens will be supported in 2021.

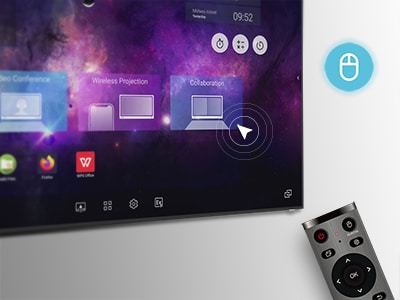

Control every session
The CS comes with a powerful remote control that doubles as a clicker and pointer. Use it as a cursor to move on-screen items, or access the floating tool to annotate or record your presentations.

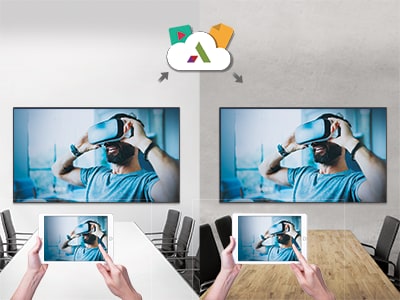

Access files on the fly
No notebook or USB drive? No problem. With BenQ’s Account Management System (AMS), you can access your documents, sheets, and slides through the cloud and edit them directly on the CS using WPS.

More ways to collaborate

Do more than just present. With multiple built-in features made for effective coworking, you can maximize your meeting time and use the CS display as a functional collaborative workspace.

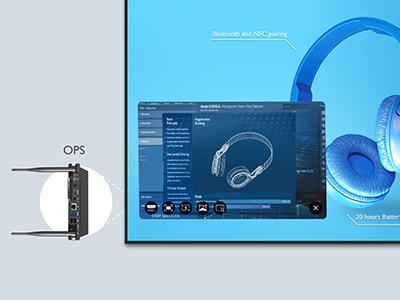

Work with any platform
Do two things at once. With Duo OS, you can open an OS window to continue working on the CS while using specialized software like AutoCAD or Photoshop from your slot-in computer or external device.

Be on the same page
No need to switch from app to app. With Duo Windows, you can work on two apps side-by-side at the same time. With all relevant information on display, you can always stay focused on the task at hand.

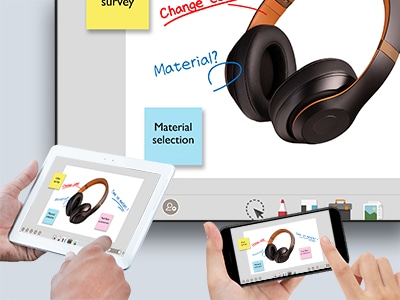

Get hands on with work
The EZWrite cloud whiteboard takes collaboration to the next level. By allowing attendees to add notes and media on the screen via their own devices, meetings get more hands on, increasing engagement.

Your conference, your call

With a flexible display that adjusts to the way you meet, you can conveniently host or join video conferences with the right software and camera that matches your meeting requirements.

Use your preferred video conferencing app

The CS and its OPS slot-in computer pair perfectly with popular video conferencing solutions such as Zoom Rooms, Microsoft Teams, Google Meet, Cisco Webex, and LogMeIn GoToMeeting. You can also load the pre-installed TeamViewer Meeting for instant video conferencing.

*Zoom Rooms, Google Meet, Cisco Webex, Microsoft Teams, Skype for Business, and GoToMeeting are compatible with the CS series via the slot-in computer.

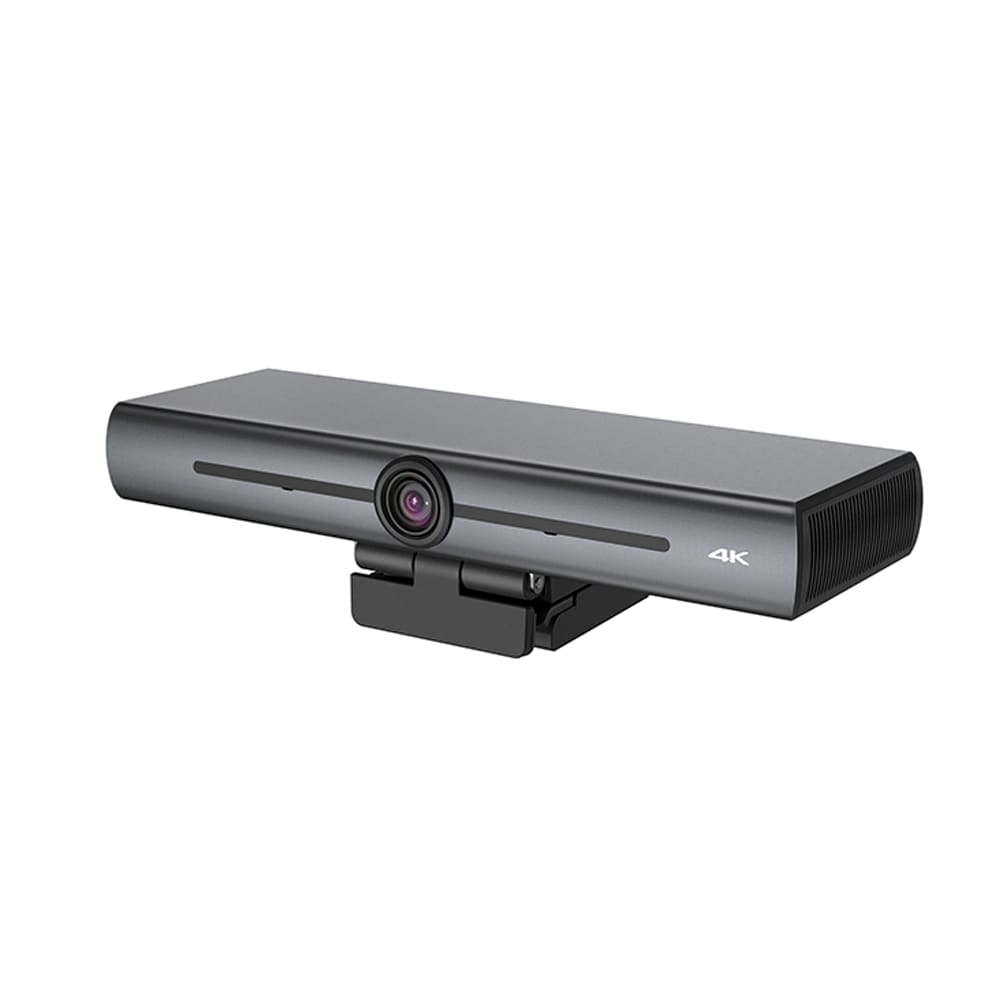

Designed for medium-sized meeting rooms

Equipped with AI-powered auto framing, 4K UHD video, and omnidirectional microphones, the DVY22 is a versatile camera designed to provide the ultimate video conferencing experience.

  • 88° wide field of view
  • Clear Full HD video
  • Omnidirectional mics with noise suppression
  • Adjusts to lighting conditions
  • USB plug and play
  •

  • 126° wide field of view
  • 4x digital zoom
  • AI-powered auto framing
  • Omnidirectional microphones with noise suppression
  • Dual-stream support

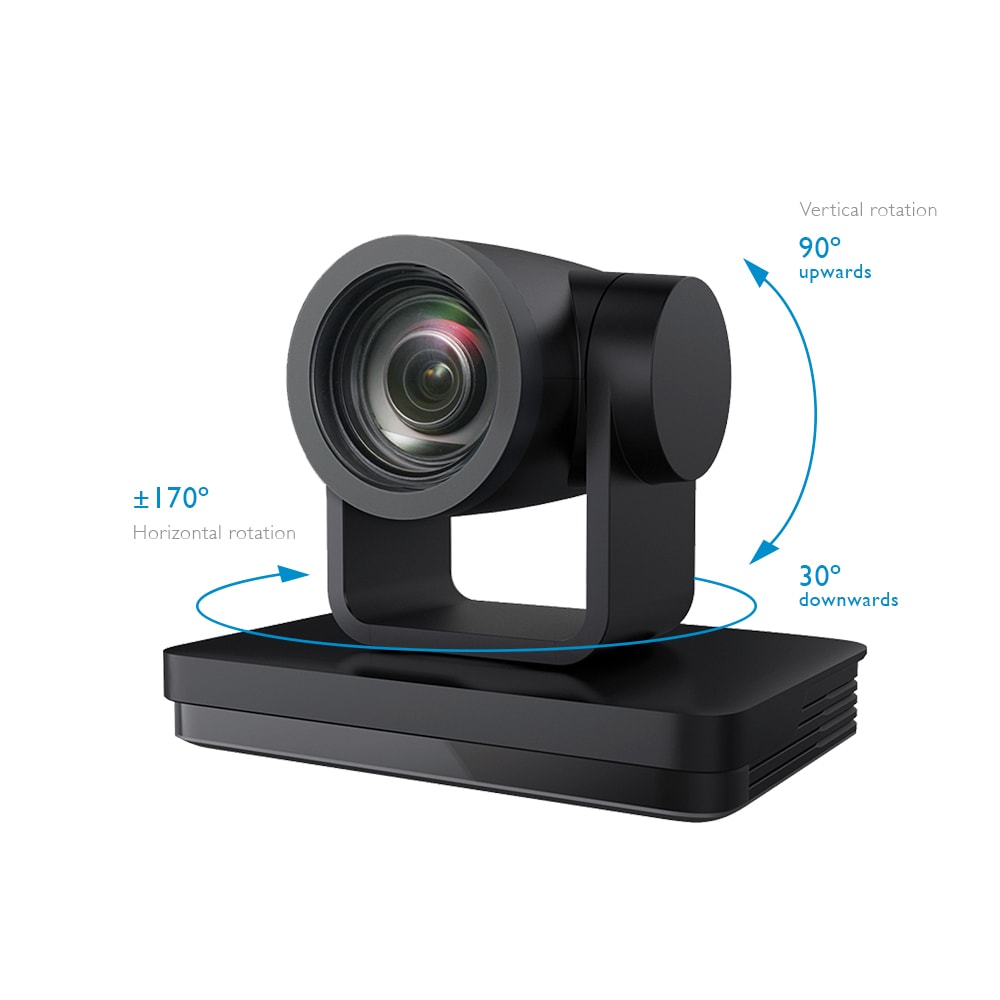

  • Ultra-detailed 20x optical zoom
  • Pan: ±170° | Tilt: -30° to +90°
  • Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
  • Streaming: RTSP and RTMP
  • Control: RS232, RS422, RS485, LAN, and remote control
  •

    Informed and always ready

    Rooms? Announcements? We’ve got you covered.
    The CS series has integrated solutions that let you reserve rooms in advance and keep teams up to speed.

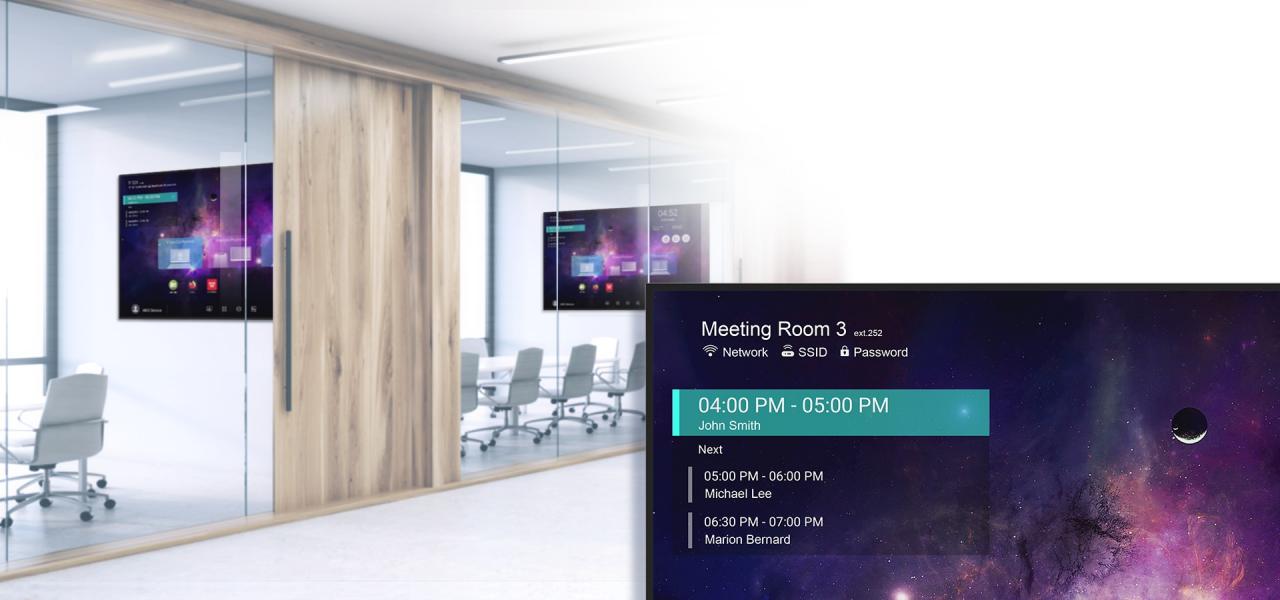

    Book rooms with ease
    Reserve displays via Meeting Room 365 while simultaneously sending out meeting invites.* The widget keeps everyone up to date about upcoming meetings and room schedules.
    *You can use Meeting Room 365 with Microsoft Outlook, Microsoft Office 365, Microsoft Exchange, and Google Workspace.

    Push instant notifications
    Keep your coworkers in the know. For timely and important announcements, you can use X-Sign Broadcast to push messages to one or more meeting room displays in your office.

    Management simplified

    Free yourself from fuss. We’ve streamlined device and user management for you so you can focus on things that matter more.

    Hassle-free management
    Whether local or remote, you can install apps or centrally monitor, manage, and update multiple displays with ease through the BenQ Device Management Solution (DMS).

    Easy user management
    Add users and edit permissions for all your displays in just one go. BenQ’s Identity and Access Management (IAM) system syncs with your AD server for seamless user management.

    Data and device protection
    Defend all your displays against malware while securing your corporate data. BenQ offers you IoT security through McAfee Mobile Security.

    Control at your fingertips
    Already on Extron? Then there’s no need to switch. The CS fully integrates with Extron so you can easily adjust your displays to your liking without ever having to change system controllers.

    Real-time troubleshooting
    Need technical support? Save your administrators’ time and effort by utilizing TeamViewer on your display to conduct real-time remote assessment and troubleshooting.

    Virtual workspace access
    With the VMware Horizon Client, you can pull up any of your virtual desktops on the CS to get instant access to your hosted apps, files, and folders anytime during a meeting.

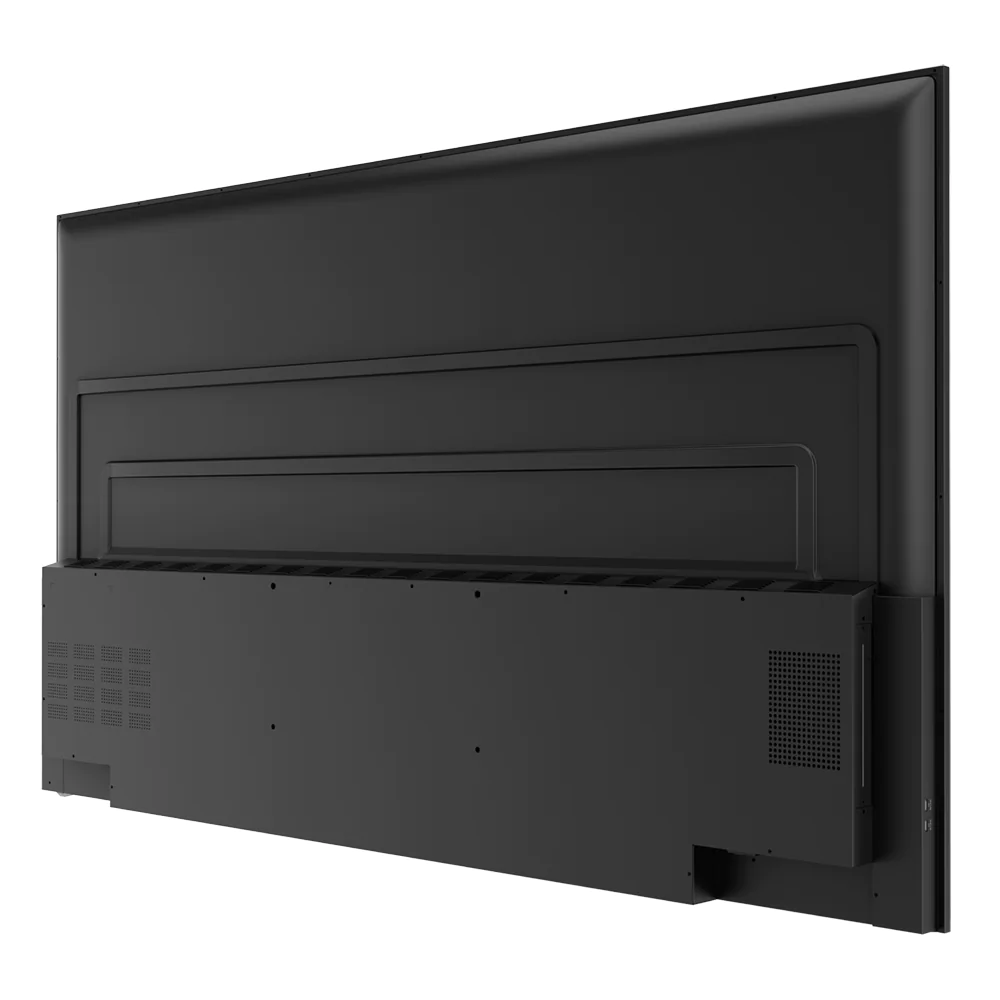

    Specification: BenQ 75″ Corporate Display – CS7501

    Projectors
    Applications

    Contrast-ratio

    Ratio

    Resolution

    IFP
    Backlight Type

    Brightness-Nits

    Display

    All Specifications

    Panel

    Screen Size

    75″
    Backlight / Lightsource

    DLED
    Contrast Ratio (Typical)

    1200:1
    Viewing Angle (Horizontal / Vertical)

    178°/178°
    Response Time (ms)

    8ms
    Color Gamut (×% NTSC)

    72%
    Display Orientation

    Landscape
    Resolution (Pixel)

    UHD 3840 x 2160
    Brightness (Typical) (nits)

    450
    Light Life (typical) (hrs)

    30,000
    Panel Surface

    AG, Haze 25%

    Speaker

    Internal Speaker

    10Wx2

    Input/Output

    Power (AC) Input

    x1
    VGA Input

    x1
    HDMI Input

    x3
    HDMI Output

    x1
    USB Player (Photo, Video)

    2.0×3 ,3.0×3 (OPS follow)
    RJ45 Port

    x1
    OPS slot

    x1

    x1

    x1

    Mechanical

    Weight (Without / With Packing) (kg)

    33.3 / 49
    Wall Mounting (VESA) (mm)(Screw type /Max. length)

    400 x 200 (4 holes); M8*15L
    Dimension (WxHxD) (mm)

    1672.2 x 954.9x 86.7

    Language

    On-Screen Display Languages

    English / French / German / Dutch / Polish / Russian / Czech / Danish / Swedish / Italian / Romanian / Finnish / Norwegian / Greek / Hungarian / Spanish / Portuguese / Traditional Chinese / Simplified Chinese / Arabic / Japanese / Thai / Persian / Vietnamese / Korea / Turkey / Indonesia (27L)

    SW support

    Whiteboarding

    EZWrite
    Wireless screen sharing

    InstaShare
    Account management

    AMS
    Device management

    DMS Cloud + DMS Local
    Broadcast system

    X-Sign Broadcast
    Firmware Update

    Over-the-air | USB

    Package/Accessory

    Remote Control

    x1
    Power Cord (By Region)

    x7 (US, JP, TW, EU, AU, UK, IN)
    VGA Cable

    x1
    Quick Start Guide

    x1
    User’s Manual (electronic file)

    x1
    HDMI Cable

    x1
    USB Cable for Touch

    x1

    Power

    Voltage

    100V ~ 240V, 50Hz / 60Hz
    Typical (watt)

    245
