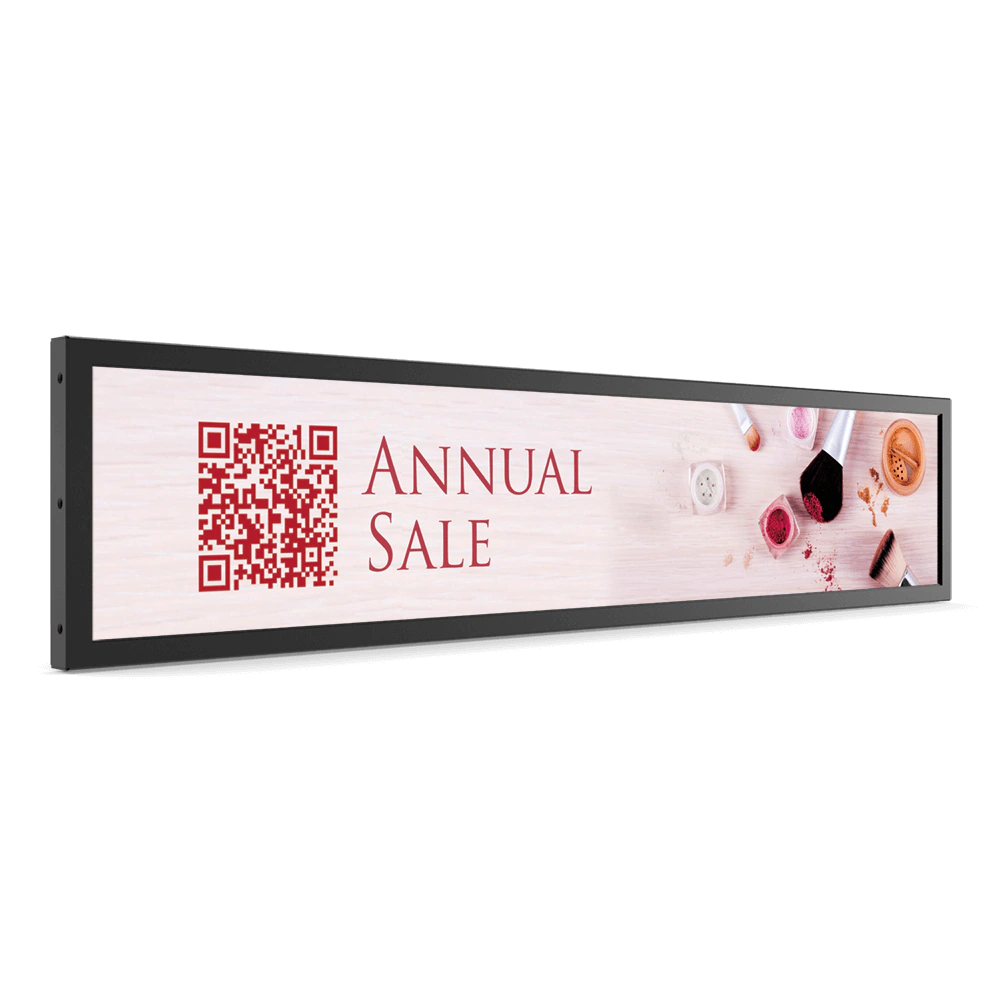

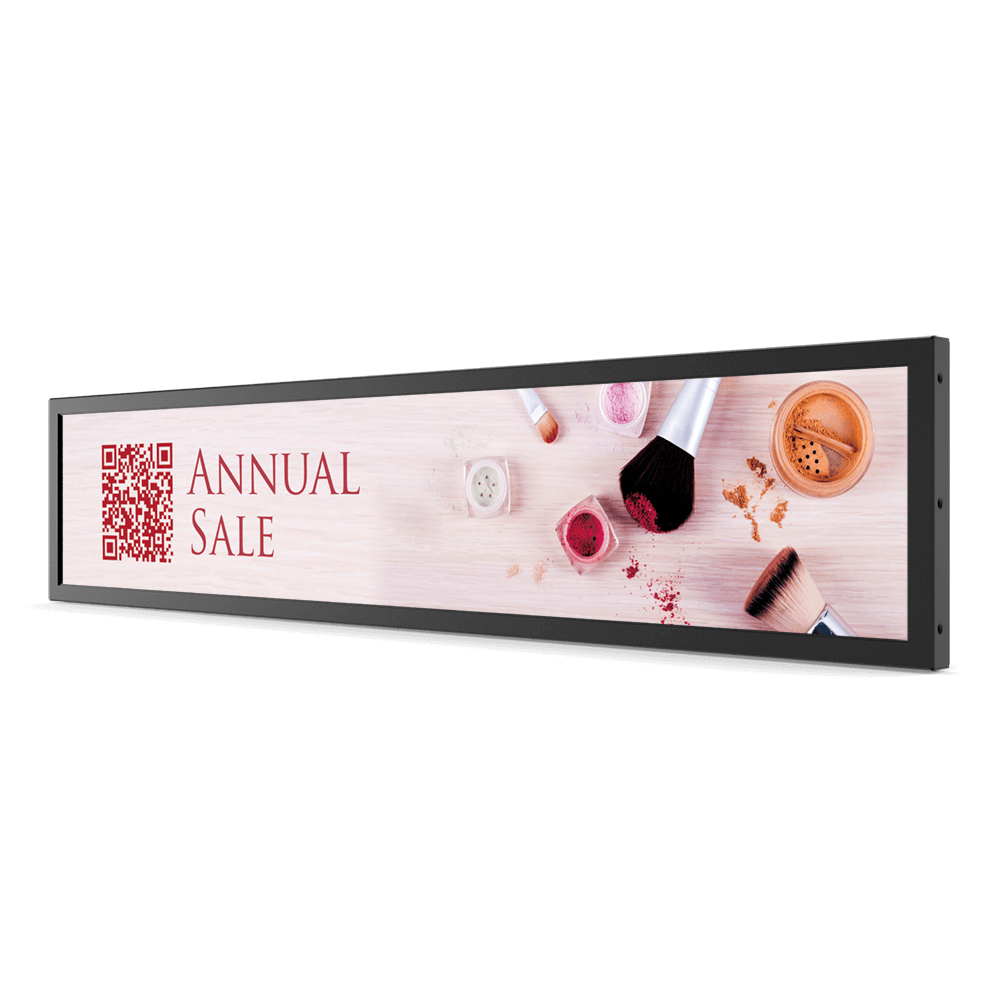

BenQ 28" Smart Stretched Display - BH2801N

Built-in media player and speakers

1000 nits of brightness suitable for well-lit spaces
Display content in portrait or landscape mode
Designed for 24/7 non-stop operation
Easily create content using custom X-Sign templates

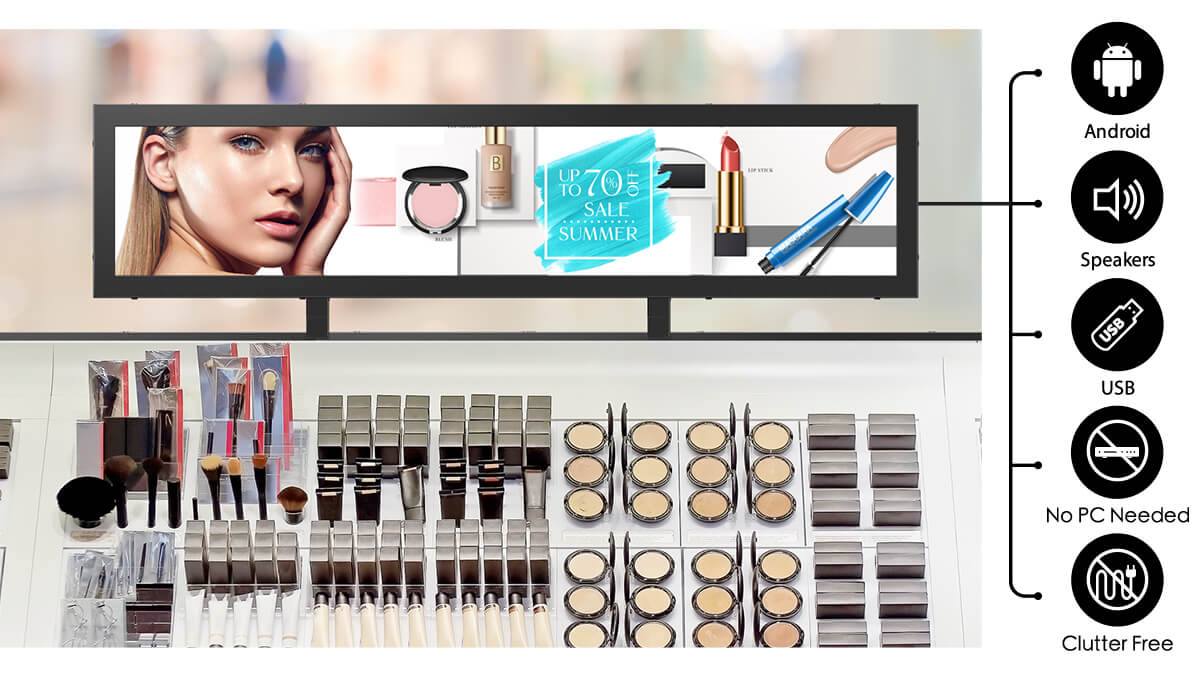

All-in-One, Clutter Free Solution

Android Built-In

Built-in Android means that BenQ BH2801N is ready to work as soon as operators plug it in. There’s no need to hook it up to a PC or other device to serve content, and embedded speakers provide for BH2801N’s audio needs. With no cables to hide, the all-in-one BH2801N fits neatly on shelves and reduces clutter.

USB Plug & Play

BH2801N’s plug-and-play simplicity enables you to access and play multimedia files directly from a USB flash drive. Requiring no PC connection or complicated cable setup, BH2801N ensures a holistic shopping experience with the most hassle-free installation.

Integrated X-Sign 2.0 Software with Stretch Content Templates

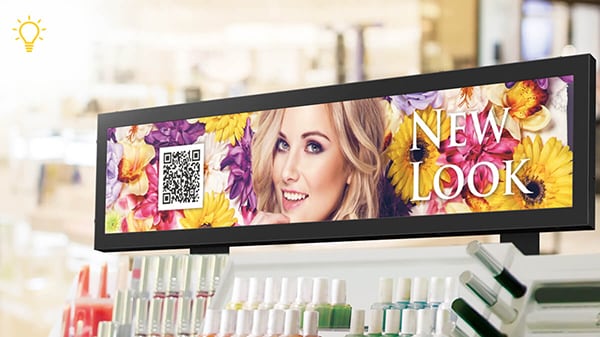

High Brightness

At 1000 nits brightness, striking colors and clarity still can be provided even in brightly lit environments, which allows BH2801N to fully support your indoor and semi-outdoor applications.

24/7 Non-Stop Operation

A 55,000-hour lifespan and industrial-class performance make BH2801N far more economical than consumer display models. Built especially for business use with advanced panel technology, BH2801N can provide reliable 24/7 non-stop performance for years and years.

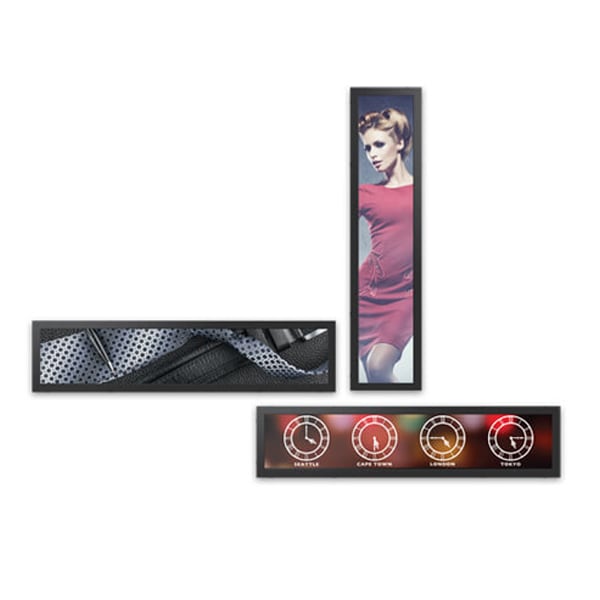

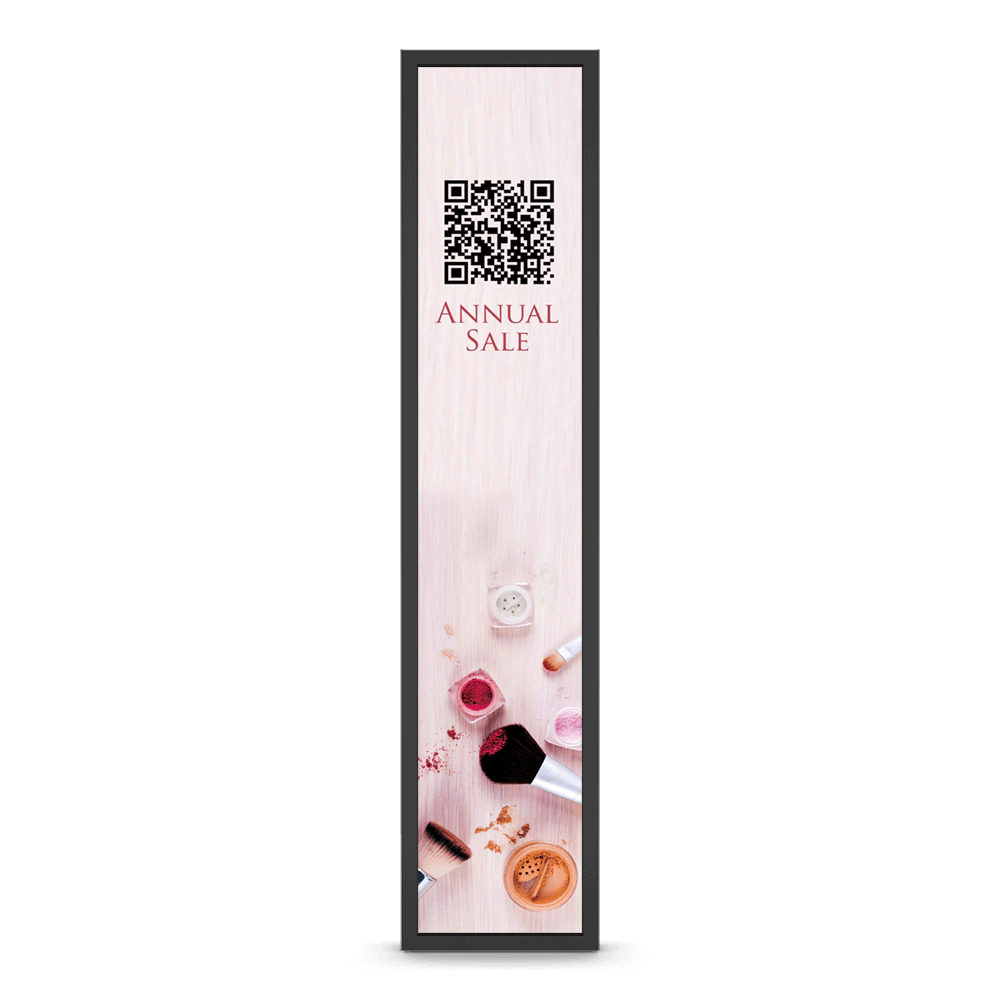

Flawless Display in Portrait and Landscape View

Unlike anything else available on the market, BenQ Bar Type displays are built to ensure flawless portrait and landscape view. This choice between vertical and horizontal installation greatly increases flexibility when operators are designing and arranging their stores.

Integrated X-Sign 2.0 Software with Stretch Content Templates

Specially Designed Long-and-Narrow Templates

X-Sign offers templates especially designed to fit the screens of Stretch Display Series. After choosing a template, users can make the perfect advertisement simply by adding images and text.

Real Time Messages

X-Sign lets operators push real-time messages to the display network to create instant excitement.

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

X-Sign Designer

BenQ’s X-Sign 2.0 takes the hassle out of designing signage content. Included with BH2801N, BenQ’s exclusive X-Sign software provides content templates that are especially designed for long-and-narrow stretch displays, making it easy for operators to quickly design and roll out new promotional material. The templates also let operators add images, videos, and scrolling text to their marketing materials. The long-size templates let operators create marketing content easily while the ability to enrich materials with media content will boost the store’s bottom line.

Instant Price Updates

Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.

Real Time Messages

X-Sign lets operators push real-time messages to the display network to create instant excitement.

QR Code Interaction and Analysis

X-Sign allows operators to embed QR Codes that, when scanned, can offer customers the latest promotional information. X-Sign also offers QR Code analysis to let operators see when and where customers are interacting with content. This analysis can help operators quickly adjust their offers to match customer interest.

Broadcast YouTube Live Streaming across Multiple Displays

With X-Sign, operators can insert live YouTube broadcasts of product launches on Smart Signage in real time, which makes promoting new products instant and easy.

Centralized Remote Display Management

X-Sign’s intuitive interface makes it easy for operators to monitor and manage all remote displays from a central, off-site location. With X-Sign, operators can keep tabs on display performance in real-time and receive instant alerts about any issues. Loaded with functionality, X-Sign also allows operators to see what content is playing on each display, manage updates, restart displays, and manage screen on/off and volume settings.

Hassle-Free Display Management

With cloud features, BenQ DMS combined Device Info and Management, Apps Management and OTA (Over-the-Air) Update to provide you an ultimate device management solution for your productivity.

Device Info and Management

Remotely control your displays with DMS Cloud via Internet. It’s an effective way to lower TCO and energy consumption for your operation.

Apps Management

Install Android™ apps for a selection of displays through our cloud server. DMS Cloud is designed to save you the hassles of repetitive manual installation work.

OTA (Over-the-Air) Update

Upgrade the latest BenQ firmware for your displays through our OTA Update support and keep them running smoothly at all times.

More Features
DMS Local

DMS Local is a Device Info and Management software based on windows OS. For users who would like to control your displays remotely via LAN, you can download DMS Local software for your operation.

MDA (Multiple Display Administrator)

For users who would like to control your displays remotely via RS232, you can download MDA software for your operation.

Specification: BenQ 28″ Smart Stretched Display – BH2801N

Projectors
Applications

Contrast-ratio

Ratio

Resolution

IFP
Backlight Type

Brightness-Nits

Display

All Specifications

Panel

Screen Size

28″
Backlight / Lightsource

E-LED
Contrast Ratio (Typical)

3000:1
Display Orientation

Landscape / Portrait
Usage (Hour/Day)

24/7
Active Area (Horizontal × Vertical)(mm)

699.4 x 133.0 mm
Resolution (Pixel)

1920 x 360
Brightness (Typical)

1000 nits
Light Life (Typical)

55,000hrs
Aspect Ratio

16:3

Platform Solution

OS

Android
System Memory (GB)

2GB
Storage (GB)

32GB

Glass

Tempered Glass

No

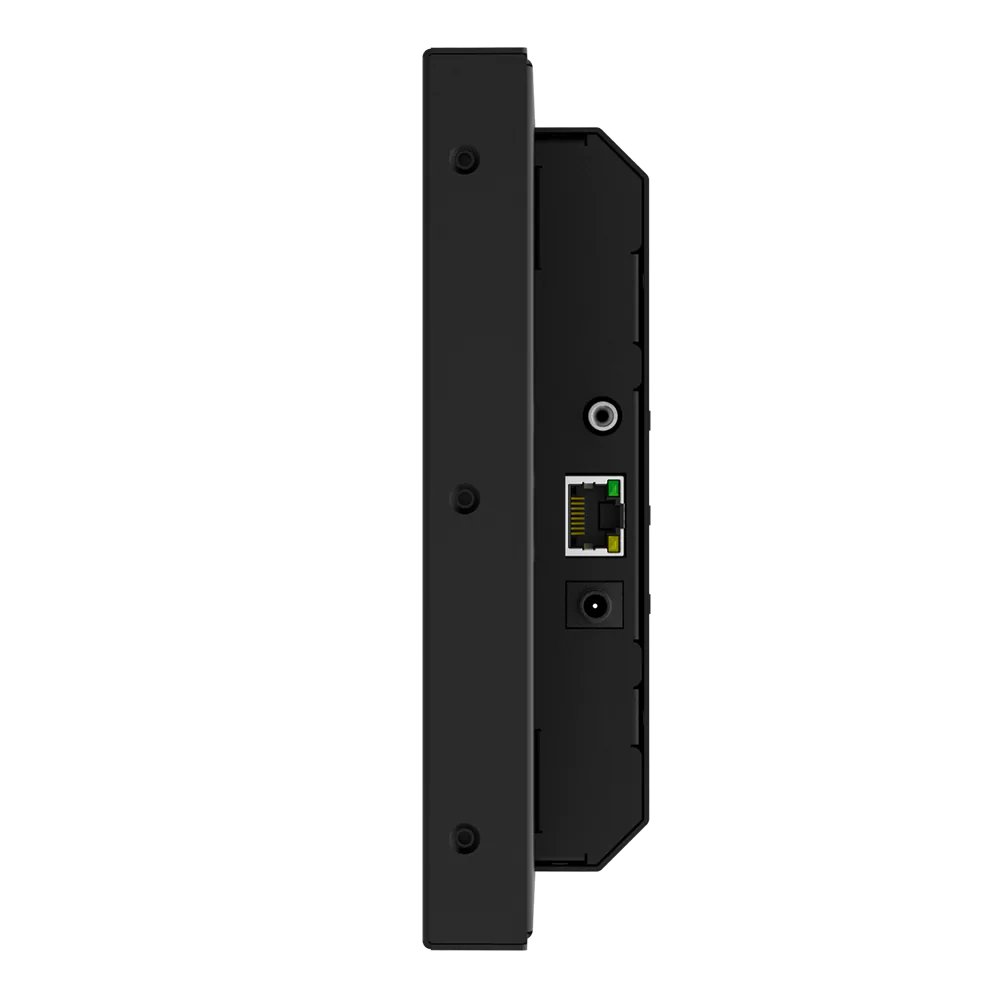

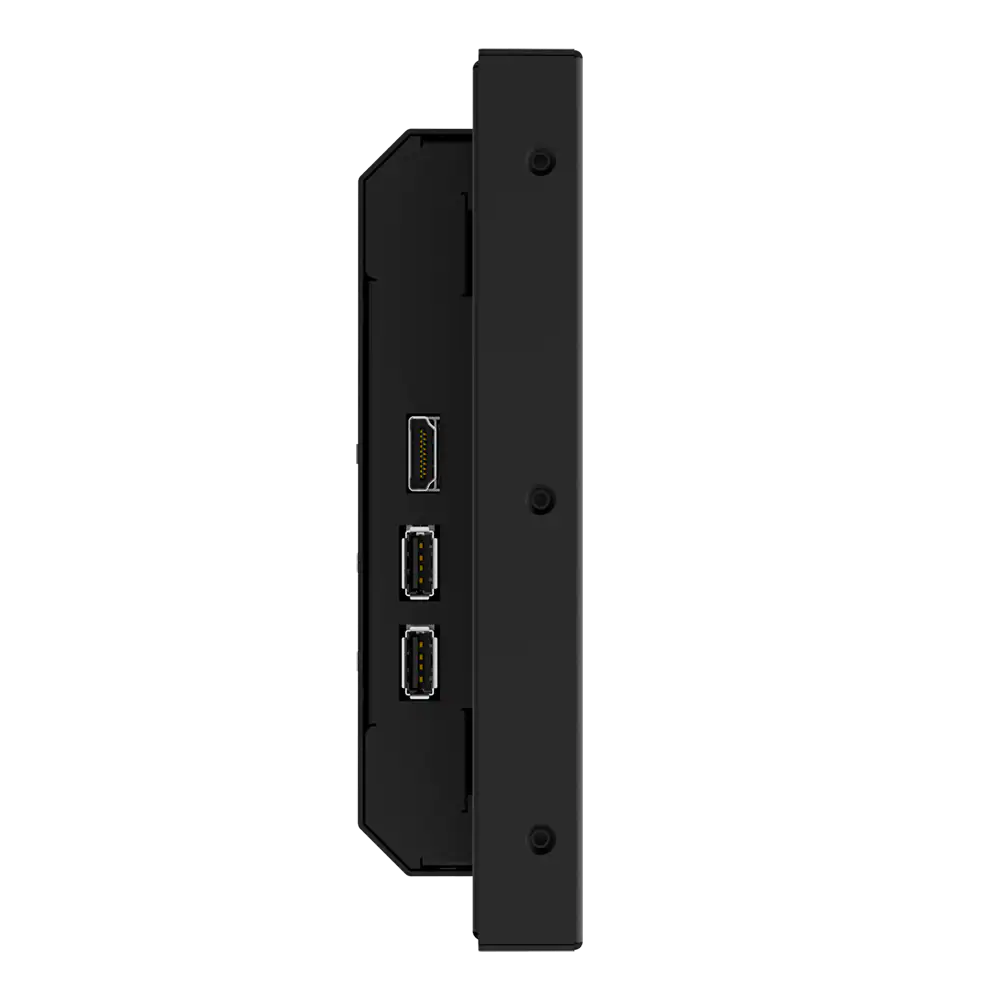

Input/Output

HDMI In/Out

x1 / N/A
RJ45 Port In/Out

x1 / N/A
USB Port (Type A)

x2 / N/A
RS232 In/Out

x1 / N/A
Internal Speaker (Amp)

1W x 2

Mechanical

Weight (Without / With Packing) (kg)

4.3kg / 7.1kg
Dimension (W×H×D) (mm)

725.8 x 159.4 x 42.5 mm
Bezel Width (top/bottom/left/right) (mm)

13.2 / 13.2 / 13.2 / 13.2 mm
Wall Mounting (VESA) (mm)

400 x 100 (4 holes) 4 – M4 x 10L

Environment

Operation Temperature

0°C ~ 50°C
Storage Temperature

-25°C ~ 60°C

Language

On-Screen Display Languages

English / French / German / Dutch / Polish / Russian / Czech / Danish / Swedish / Italian / Romanian / Finnish / Norwegian / Greek / Hungarian / Spanish / Portuguese / Traditional Chinese / Simplified Chinese / Arabic / Japanese / Thai / Persian / Vietnamese / Korean (25 Languages)

SW support

X-Sign (Please check X-Sign website for detailed compatibility information)

Yes
Multiple Display Control (MDA) Support

Yes

Package/Accessory

Remote Control

Yes
Power Cord (By Region)

Yes
Quick Start Guide

Yes
User’s Manual (electronic file)

Yes
HDMI Cable

Yes
RS232 Cable/RS232 Loop Cable

Yes / No

Power

AC/DC In

DC
Voltage

100V ~ 240V, 50Hz / 60Hz
Power Consumption (typical/standby )

20W/ < 0.5W
