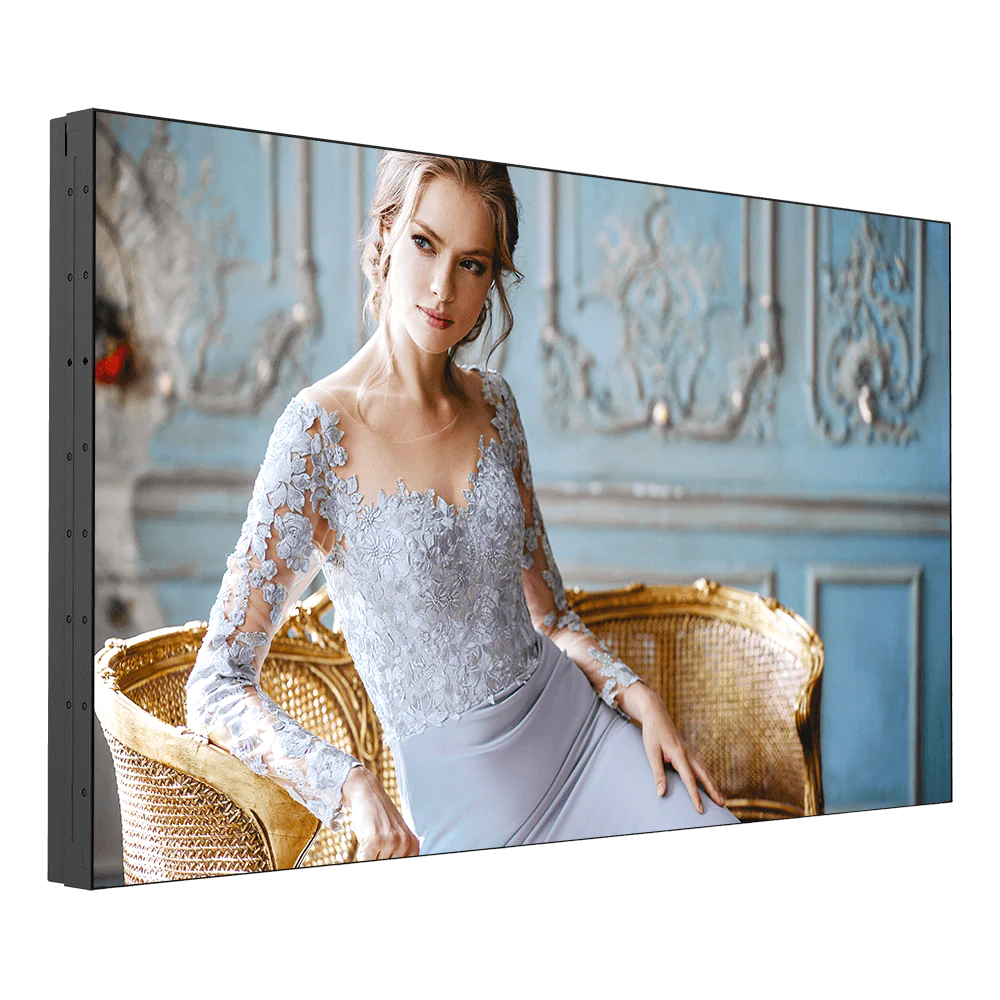

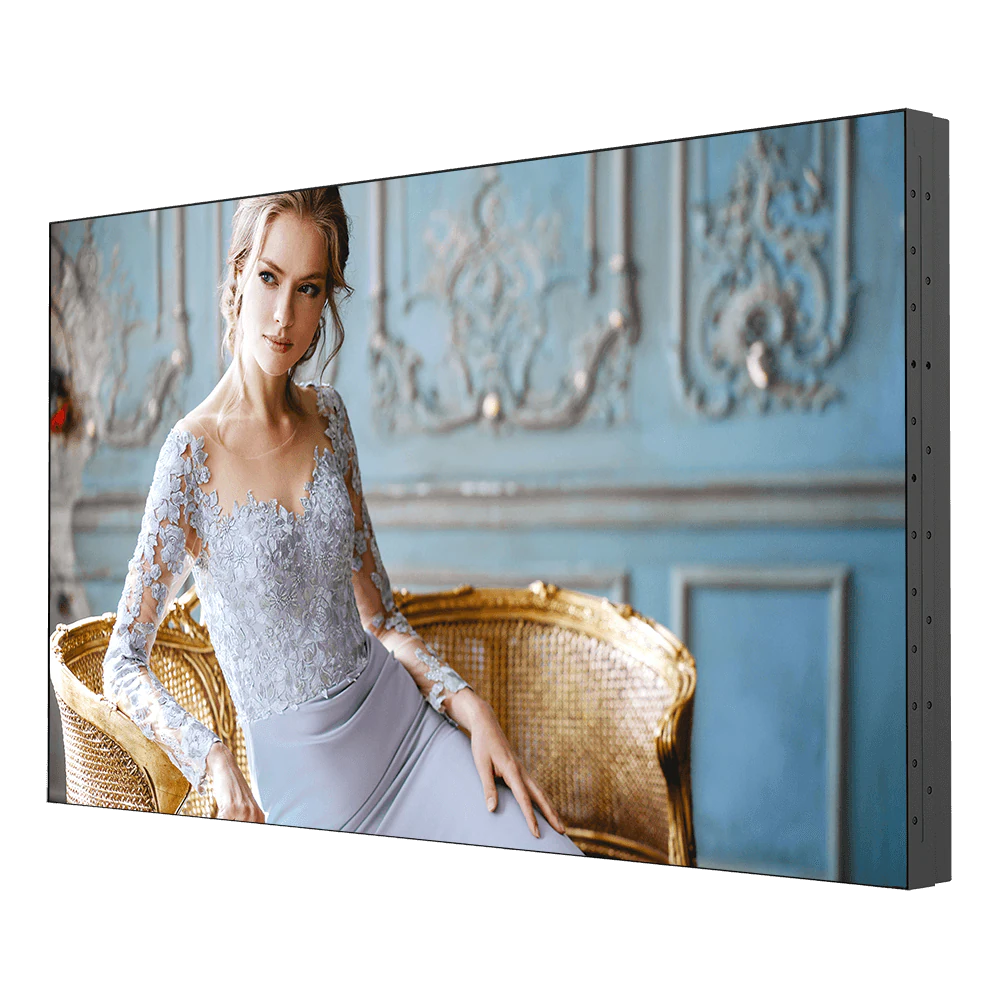

BenQ 49″ Video Wall Display – PL4901

3.5 mm ultra-narrow bezel-to-bezel design

4K UHD clarity with 2 × 2 DVI daisy chain
Exclusive color calibration and configuration software
24/7 non-stop operation and portrait or landscape mode
Hassle-free device management

0.44 mm Skinniest bezels in the industry

Sleek, sharp,
and consistent

Barely noticeable 3.5 mm bezel-to-bezel design

The ultra-narrow bezel displays create video walls with a maximized content-to-bezel ratio.

Sharp images from any angle

The IPS panels offer some of the best horizontal and vertical viewing angles to ensure that your audience the best viewing experience from any view point.

Panel-to-panel consistency

The PL4901 is factory-calibrated so that each panel of your video wall has consistent color and brightness.

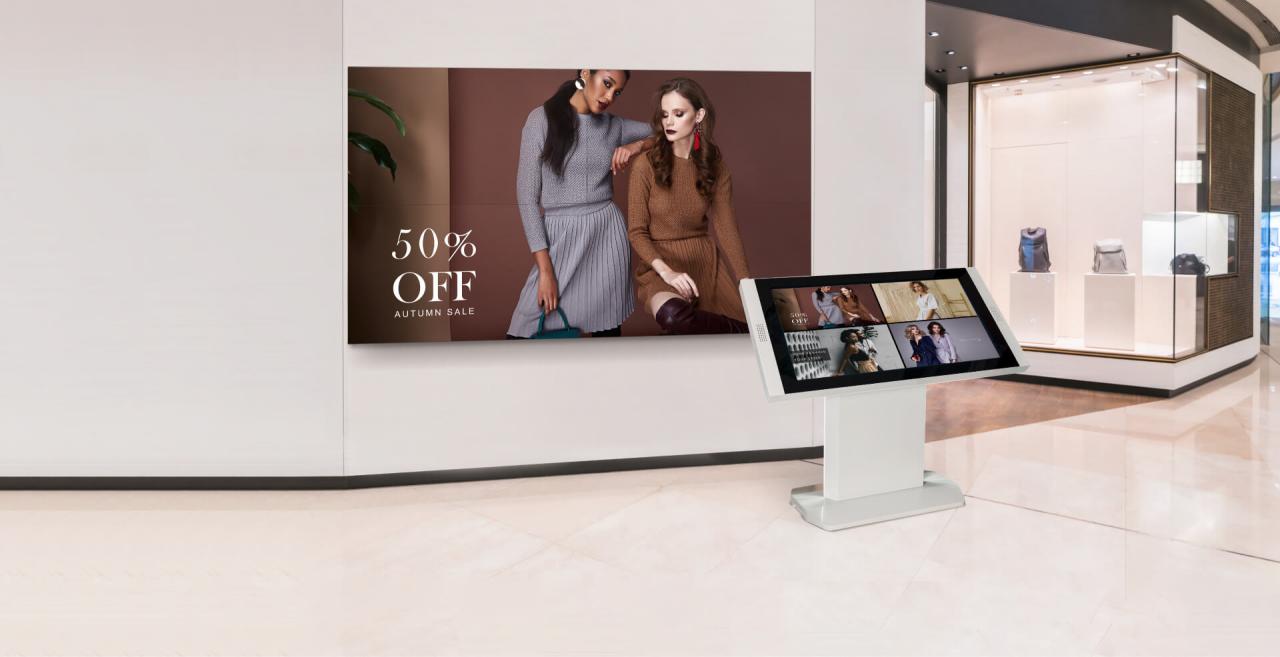

A large-scale interactive experience

Pairing an interactive touch display with a PL4901 video wall offers audiences an interactive and immersive experience on a large scale. What’s playing on the video wall adjusts to how the viewers interact with the touch display.

Hassle-free content management

Easy 4K UHD content creation and management

Easy 4K UHD content creation and management

PL4901 is equipped to display stunning 4K UHD contents across a 2×2 video wall installation via DVI daisy chain. To further facilitate content management, the PL4901 is X-Sign software supported, allowing you to easily create and enrich your 4K content with over 100 built-in templates.

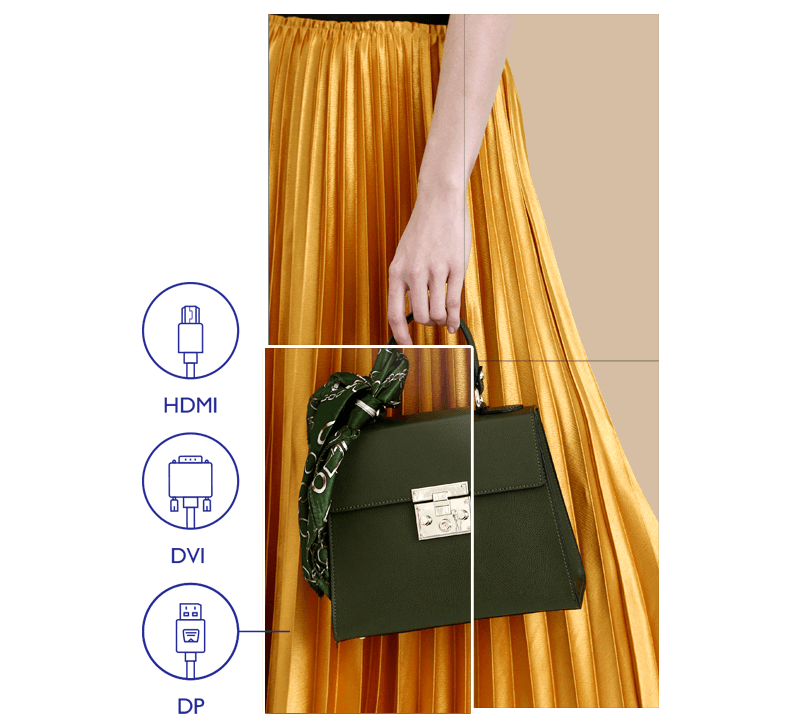

Multiple input sources for flexible connectivity

Multiple input sources for flexible connectivity

Unlike other video walls in the market that have limited input support, the PL4901 lets you display images through DVI, DisplayPort, and HDMI. It uses DVI for daisy-chaining, ensuring consistent, uninterrupted output.

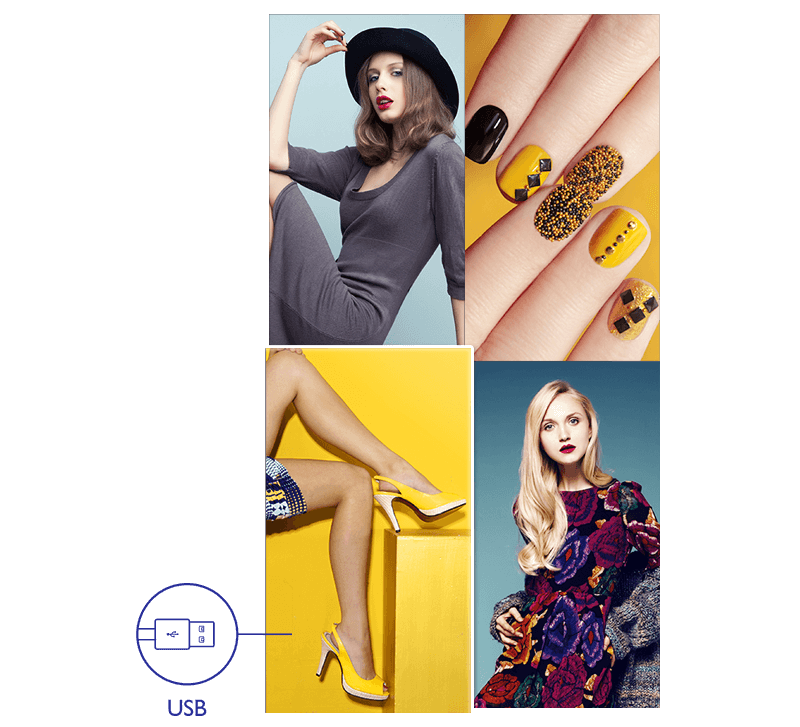

Display Content with Ease

Display Content with Ease

Plug a USB flash drive into the PL4901 to instantly play multimedia content. After inserting the USB flash drive, you can precisely arrange a playlist and schedule content playback times so they fit your business’s needs.

Effortless display management

Color calibration and video wall management

Color calibration and video wall management

Use BenQ’s color calibration software to set up and calibrate video wall panels on your Microsoft Windows device.

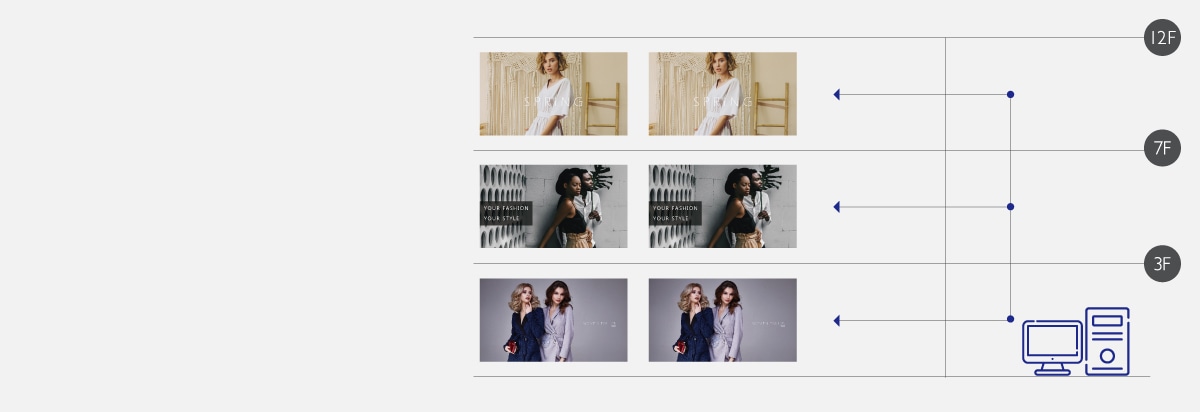

DMS Local

DMS (Device Management Solution) Local is a Windows-based device management solution that allows IT staff to maintain multiple devices on the same LAN.

MDA

MDA (Multiple Display Administrator) runs on Microsoft Windows and allows IT staff to control their displays remotely via RS-232.

Specification: BenQ 49″ Video Wall Display – PL4901

Applications

Backlight Type

Brightness-Nits

Contrast-ratio

Ratio

Resolution

Display

All Specifications

Panel

Screen Size

49″
Contrast Ratio (Typical)

1200:1
Display Orientation

• Landscape
• Portrait
Usage (Hour/Day)

24 hours/7 days
Active area (W × H)

1074.2 X 604.3 mm
Resolution

1920 × 1080 pixels
Brightness (Typical)

500 nits
Viewing angle (H × V)

178°/178°
Light Life (Typical)

50000 hrs
Aspect Ratio

16:9
Backlight

Direct LED

Speaker

Internal Speaker

2 x 8 W
3.5 mm line-out

1

Input/Output

Video input

• 2 × HDMI (2.0 x 1, 1.4 x 1) • DisplayPort (1.2) • VGA • DVI
Video output

DVI (loop through)
PC Audio Input (3.5mm)

1
RJ45

1
USB

1 × Type-A (2.0)
RS232

1

Mechanical

Weight (Without / With Packing) (kg)

23.6 kg/35.8 kg

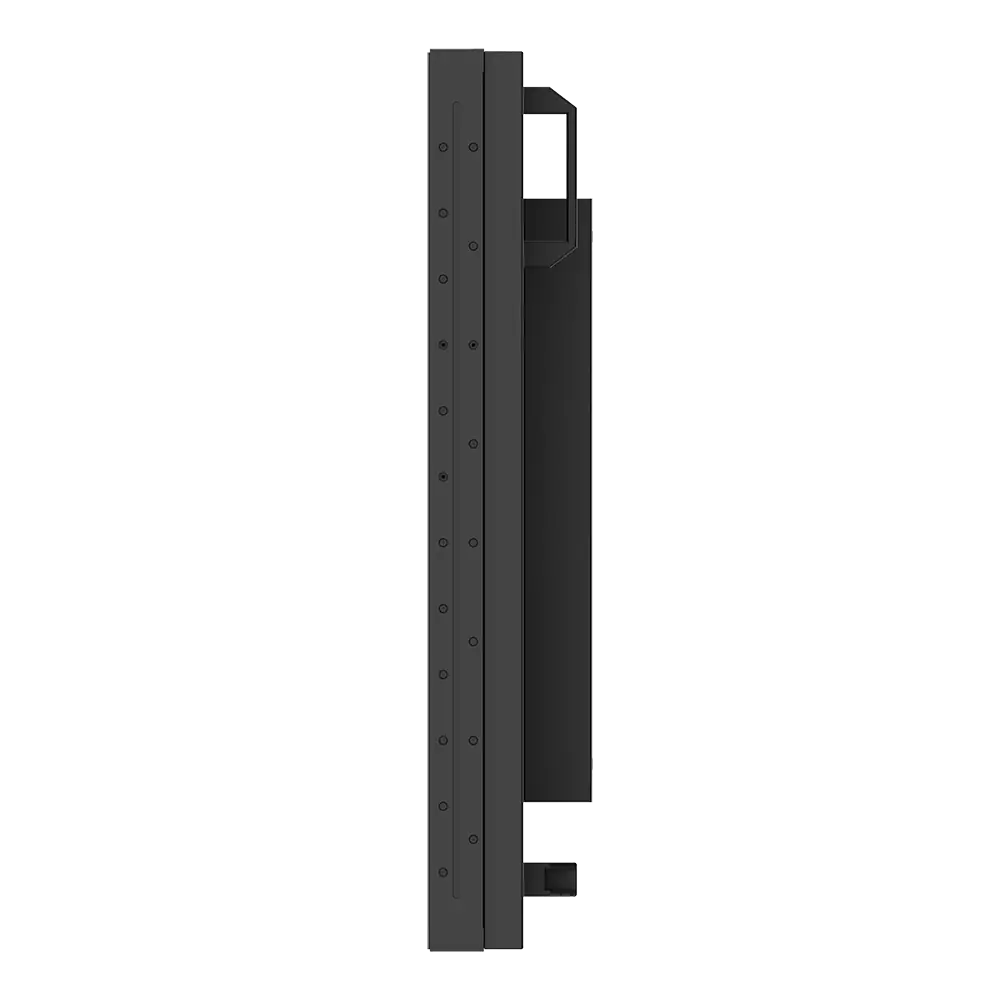

Dimension (W×H×D) (mm)

1078.4 x 608.5 x 117.4 mm
Bezel Width (top/bottom/left/right) (mm)

2.5/1.0/2.5/1.0 mm

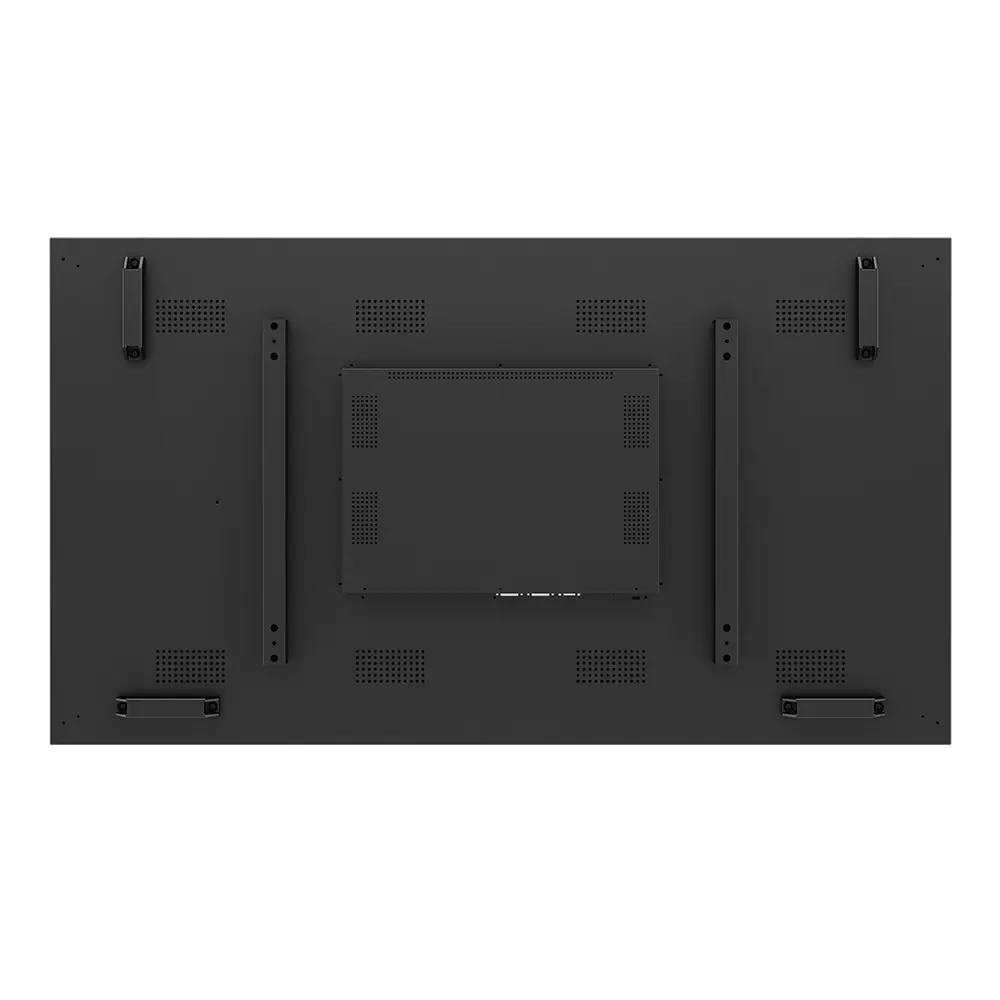

VESA mount

600 x 400 mm, 4-M6*40L

Environment

Operation Temperature

0°C to 40°C
Storage Temperature

-20°C to 60°C

Language

OSD / Quick Start Guide / User’s Manual

EN/EF/SP/CN/EP/GM/RS/IT (8 Languages)

SW support

X-Sign

Yes
Device Management Solution (DMS)

Local

Package/Accessory

Remote Control

1
Power Cord (By Region)

6
Quick Start Guide

1
HDMI Cable

1
DVI Cable

1
DP Cable

1
RS232 cable

RJ45 to RS232 + RS232 to USB + LAN (loop through)
User manual

Online

Power

Power Consumption (typical/standby )

150 W/0.5 W
Power

AC 100V-240V, 50/60Hz
Switch
