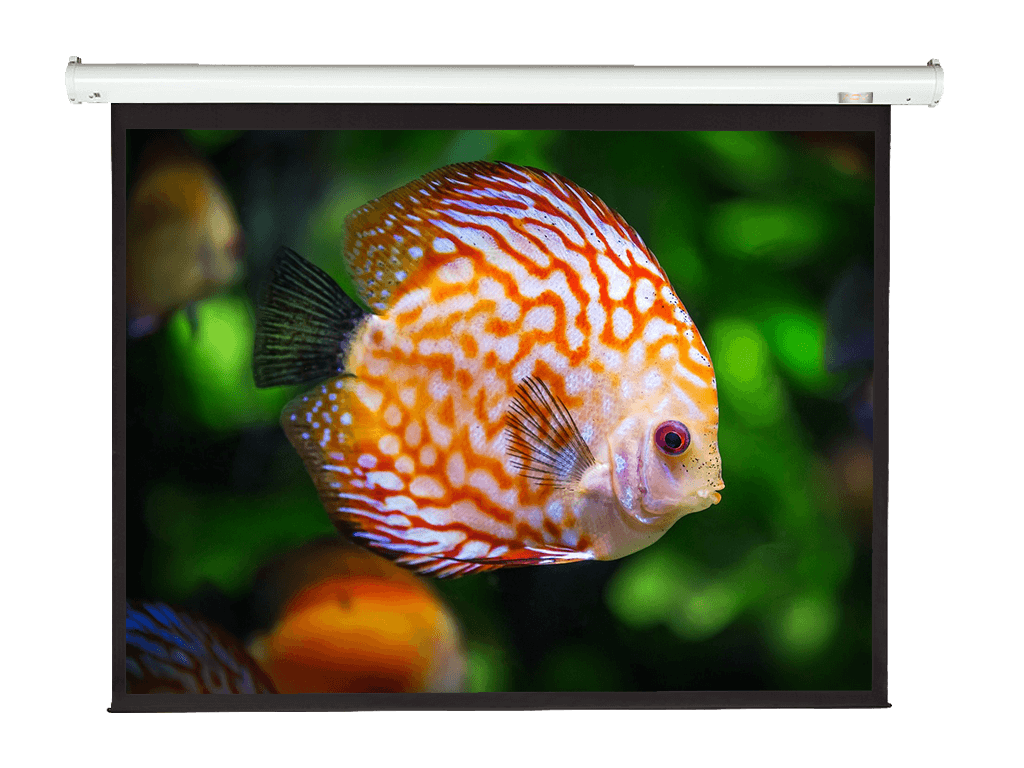

AOV Electric Screen (Multiple Size Options)

$1,780.00$4,080.00

Clear
Electric Wall Screen
Aspect Ratio Viewable Diagonal in. Model Projected Area Cover Size
LxDxH(mm)
Package Size
LxDxH(mm)
Weight
(kg)
W(mm) H(mm)
1:1 50″ ES050S 1270 1270 1535X81X108 1765X165X125 7.9
60″ ES060S 1520 1520 1785X81X108 2015X165X125 9
70″ ES070S 1780 1780 2045X81X108 2275X165X125 10.2
84″ ES084S 2130 2130 2395X81X108 2625X165X125 11.8
96″ ES096S 2440 2440 2705X96X114 2935X185X135 13.2
4:3 72″ ES072X 1460 1100 1725X81X108 1955X165X125 8.3
84″ ES084X 1710 1280 1970X81X108 2200X165X125 9.3
100″ ES100X 2030 1520 2295X81X108 2525X165X125 10.8
120″ ES120X 2440 1830 2705X81X108 2935X175X125 12.75
16:9 80″ ES080W 1770 995 2035X82X110 2265X165X125 10.6
92″ ES092W 2030 1140 2295X82X110 2525X165X125 11.6
100″ ES100W 2215 1245 2480X82X110 2710X165X125 12.1
106″ ES106W 2345 1320 2605X82X110 2840X165X125 13.2
119″ ES119W 2635 1480 2915X100X123 3145X165X125 16.6
126″ ES126W 2790 1570 3065X100X123 3220X185X135 22
133″ ES133W 2950 1655 3220X100X123 3460X185X135 28
16:10 80″ ES080U 1720 1075 2010X82X110 2235X165X125 10.6
92″ ES092U 1980 1240 2270X82X110 2475X165X125 11.8
100″ ES100U 2150 1345 2550X82X110 2785X165X125 14.5
106″ ES106U 2280 1425 2570X82X110 2795X165X125 15.1
119″ ES119U 2560 1600 2850X100X123 3075X165X125 17.8
126″ ES126U 2714 1696 2989X100X123 3250X185X135 22
133″ ES133U 2860 1790 3130X100X123 3390X185X135 23.7
Electric Wall Screen
Aspect Ratio 1:1
Viewable Diagonal in. 50″
Model ES050S
Projected Area W(mm) 1270
H(mm) 1270
Cover Size LxDxH(mm) 1535x81x108
Package Size LxDxH(mm) 1765x165x125
Weight (kg) 7.9
Viewable Diagonal in. 60″
Model ES060S
Projected Area W(mm) 1520
H(mm) 1520
Cover Size LxDxH(mm) 1785x81x108
Package Size LxDxH(mm) 2015x165x125
Weight (kg) 9
Viewable Diagonal in. 70″
Model ES070S
Projected Area W(mm) 1270
H(mm) 1270
Cover Size LxDxH(mm) 2045x81x108
Package Size LxDxH(mm) 2275x165x125
Weight (kg) 10.2
Viewable Diagonal in. 84″
Model ES084S
Projected Area W(mm) 1270
H(mm) 1270
Cover Size LxDxH(mm) 2395x81x108
Package Size LxDxH(mm) 2625x165x125
Weight (kg) 11.8
Viewable Diagonal in. 96″
Model ES096S
Projected Area W(mm) 1270
H(mm) 1270
Cover Size LxDxH(mm) 2705x96x114
Package Size LxDxH(mm) 2935x185x135
Weight (kg) 13.2
Aspect Ratio 4:3
Viewable Diagonal in. 72″
Model ES072X
Projected Area W(mm) 1460
H(mm) 1100
Cover Size LxDxH(mm) 1725x81x108
Package Size LxDxH(mm) 1955x165x125
Weight (kg) 8.3
Viewable Diagonal in. 84″
Model ES084X
Projected Area W(mm) 1710
H(mm) 1280
Cover Size LxDxH(mm) 1970x81x108
Package Size LxDxH(mm) 2200x165x125
Weight (kg) 9.3
Viewable Diagonal in. 100″
Model ES100X
Projected Area W(mm) 2030
H(mm) 1520
Cover Size LxDxH(mm) 2295x81x108
Package Size LxDxH(mm) 2525x165x125
Weight (kg) 10.8
Viewable Diagonal in. 120″
Model ES120X
Projected Area W(mm) 2440
H(mm) 1830
Cover Size LxDxH(mm) 2705x81x108
Package Size LxDxH(mm) 2935x175x125
Weight (kg) 12.75
Aspect Ratio 16:9
Viewable Diagonal in. 80″
Model ES080W
Projected Area W(mm) 1770
H(mm) 995
Cover Size LxDxH(mm) 2035x82x110
Package Size LxDxH(mm) 2265x165x125
Weight (kg) 10.6
Viewable Diagonal in. 92″
Model ES092W
Projected Area W(mm) 2030
H(mm) 1140
Cover Size LxDxH(mm) 2295x82x110
Package Size LxDxH(mm) 2525x165x125
Weight (kg) 11.6
Viewable Diagonal in. 100″
Model ES100W
Projected Area W(mm) 2215
H(mm) 1245
Cover Size LxDxH(mm) 2480x82x110
Package Size LxDxH(mm) 2710x165x125
Weight (kg) 12.1
Viewable Diagonal in. 106″
Model ES106W
Projected Area W(mm) 2345
H(mm) 1320
Cover Size LxDxH(mm) 2605x82x110
Package Size LxDxH(mm) 2840x165x125
Weight (kg) 13.2
Viewable Diagonal in. 119″
Model ES119W
Projected Area W(mm) 2635
H(mm) 1480
Cover Size LxDxH(mm) 2915x100x123
Package Size LxDxH(mm) 3145x165x125
Weight (kg) 16.6
Viewable Diagonal in. 126″
Model ES126W
Projected Area W(mm) 2790
H(mm) 1570
Cover Size LxDxH(mm) 3065x100x123
Package Size LxDxH(mm) 3220x185x135
Weight (kg) 22
Viewable Diagonal in. 133″
Model ES133W
Projected Area W(mm) 2950
H(mm) 1655
Cover Size LxDxH(mm) 3220x100x123
Package Size LxDxH(mm) 3460x185x135
Weight (kg) 28
Aspect Ratio 16:10
Viewable Diagonal in. 80″
Model ES080U
Projected Area W(mm) 1720
H(mm) 1075
Cover Size LxDxH(mm) 2010x82x110
Package Size LxDxH(mm) 2235x165x125
Weight (kg) 10.6
Viewable Diagonal in. 92″
Model ES092U
Projected Area W(mm) 1980
H(mm) 1240
Cover Size LxDxH(mm) 2270x82x110
Package Size LxDxH(mm) 2475x165x125
Weight (kg) 11.8
Viewable Diagonal in. 100″
Model ES100U
Projected Area W(mm) 2150
H(mm) 1345
Cover Size LxDxH(mm) 2550X82X110
Package Size LxDxH(mm) 2785X165X125
Weight (kg) 14.5
Viewable Diagonal in. 106″
Model ES106U
Projected Area W(mm) 2280
H(mm) 1425
Cover Size LxDxH(mm) 2570X82X110
Package Size LxDxH(mm) 2795X165X125
Weight (kg) 15.1
Viewable Diagonal in. 119″
Model ES119U
Projected Area W(mm) 2560
H(mm) 1600
Cover Size LxDxH(mm) 2850X100X123
Package Size LxDxH(mm) 3075X165X125
Weight (kg) 17.8
Viewable Diagonal in. 126″
Model ES126U
Projected Area W(mm) 2714
H(mm) 1696
Cover Size LxDxH(mm) 2989X100X123
Package Size LxDxH(mm) 3250X185X135
Weight (kg) 22
Viewable Diagonal in. 133″
Model ES133U
Projected Area W(mm) 2860
H(mm) 1790
Cover Size LxDxH(mm) 3130X100X123
Package Size LxDxH(mm) 3390X185X135
Weight (kg) 23.7

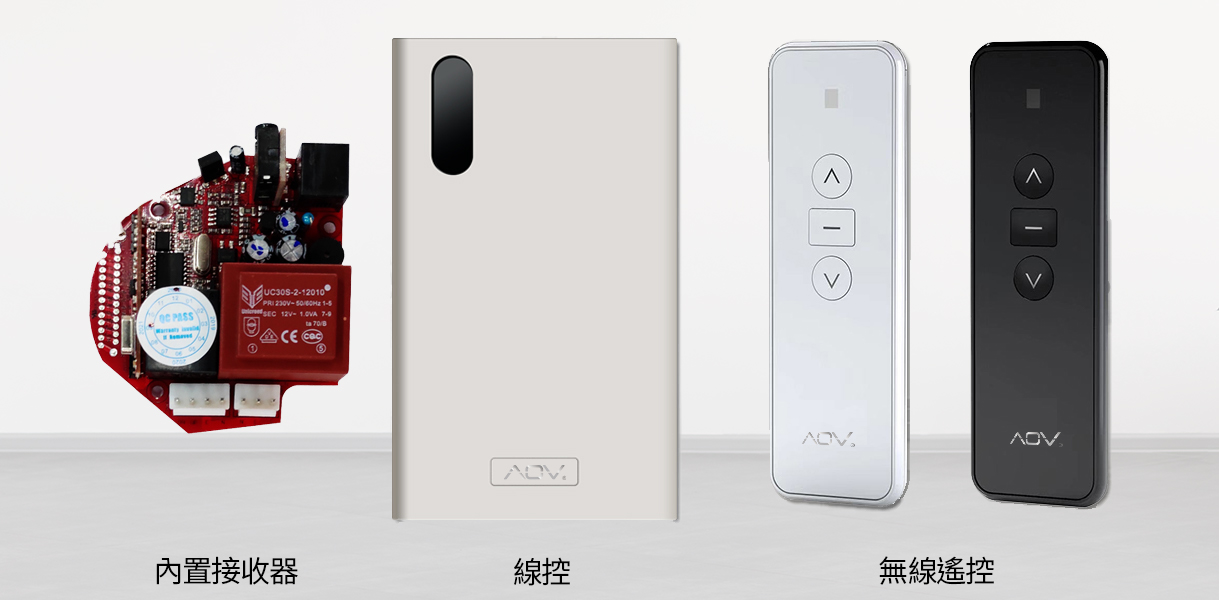

遙控

可匹配智能中控天花板內安裝對遙控無影響

默認採用內置遙控器,無線接收器安裝在電動投影幕裡面,用無線發射器控制投影幕升降,讓投影幕看起來整體更簡約美觀。
